We offer Apparatus for Measurement of Susceptibility of Paramagnetic Solids by Gouy’s Method in this, the solid sample in the form of a long cylinder (area of cross section A) is hung from the pan of a balance and is placed such that one end of the sample is between the pole-pieces of the magnet  (field H ) and the other one is outside the field. The force exerted on the sample by the inhomogeneous magnetic field is obtained by measuring the apparent change (Δm ) in the mass of the sample. The susceptibility χ is given by
                 χ = 2Δmg/AH2
If the sample is in the form of powder, it is filled in a long nonmagnetic tube which is then suspended from the pan of the balance.

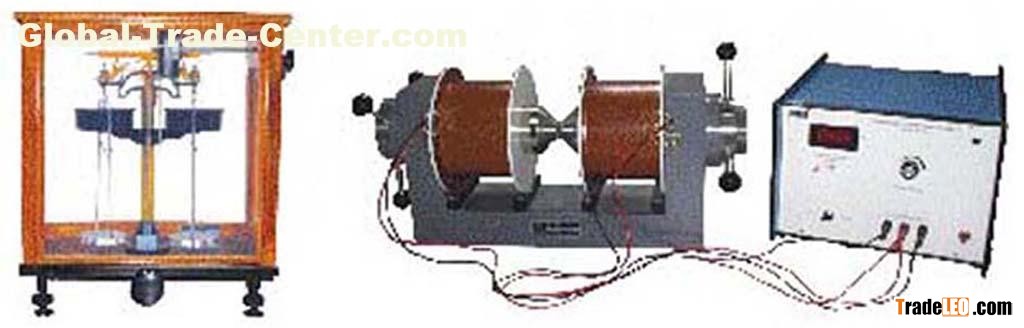

The set up consists of the following:

(a) Scientific Balance, KSB-07
     Capacity: 200 gms
     Sensitivity: 1/10 mg. by vernier
     Beam: Hard Bronze/ Brass
     Arrestment: Circular, falling away type
     Air Damping: Very quick and positive, beam coming to rest in 2-3 sec
    Chainomatic Device: A gold plated chain is suspended from the beam with its other end screwed on the rotating drum on which a scale graduated from 0 to 10 div each division representing 1mg is installed. By the movement of this scale before a vernier, reading upto 1/10th mg is taken

(b) Sample in the form of a long rod:
    Set of 4 samples, 2 each of Ebonite and Wood

(c) Electromagnet, Model EMU-75T
     Pole Pieces: 75mm tappered to 25mm
     Mag. Field: 20KG at 6mm airgap
     Energising Coils: Two of approx. 13Ω each
     Power: 0-90Vdc, 3A, for coils in series
                 0-45Vdc, 6A, for coils in parallel

(d) Constant Current Power Supply, Model DPS-175

Current: 0-3A per coil Smoothly adjustable
Line Regulation: ±0.1% for 10% mains variation
Load Regulation: ±0.1% for load variation from 0 to max.
Display: 3½ digit, 7 segment LED display
Protection: Protected against overload, short circuit and transients caused by the load inductance.
Power: 220V 10%, 50Hz or 110V 10%, 60Hz as required
Weight: 13Kg.

(e) Gaussmeter, Model DGM-202 or DGM-102

The experiment is complete in all respect.
