Figure 1003 hammer union is designed of a ball seat, which allows for the misalignment of up to 7.5° from center. The total misalignment angle is 15°. The replaceable O-ring, made from high quality nitrile, ensures excellent sealing effect at any misalignment position. It is recommended for high pressure pipeline connection where lines cannot be aligned. It is suitable for air, water, oil, gas or mud service of 10000 psi cold working pressure. It is also used for sour gas of 7500 psi cold working pressure. The nut is black and parts are green. It is available with threaded or butt weld.

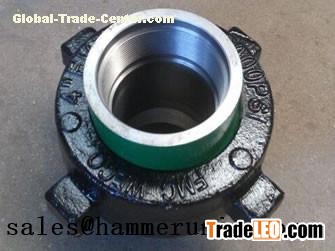

An assembled figure 1003 hammer union.

Figure 1003 hammer union.The male sub and female sub of figure 1003 hammer union.

Figure 1003 hammer union parts.

The details of figure 1003 hammer union:

Cold working pressure: 10000 psi for standard service, 7500 psi for sour gas service.

Black nut and green parts.

Threaded or butt weld.

Misalignment type union.

Replaceable O-ring providing excellent sealing.

Recommended for high pressure pipeline connection where lines cannot be aligned.

The specification of figure 1003 hammer union

Part No. Nominal pipe size Attended mode Total length Nut radius Material Weight

inch mm inch mm inch mm nut subs lbs kg

HUF1003-01 3 76.2 NPT 9-1/8 231.8 4-7/8 123.8 SC AS 45.0 99.2

HUF1003-02 3 76.2 SCH160 8-7/8 225.4 4-7/8 123.8 SC AS 47.5 104.7

HUF1003-03 3 76.2 XXHVY 9-1/8 231.8 4-7/8 123.8 SC AS 48.5 106.9

HUF1003-04 4 101.6 NPT 10-15/16 277.8 5-3/4 146.0 SF SF 72.0 158.7

HUF1003-05 4 101.6 SCH160 10-11/16 271.5 5-3/4 146.0 SF AS 76.0 167.5

HUF1003-06 4 101.6 XXHVY 10-15/16 277.8 5-3/4 146.0 SF AS 78.0 172.0

HUF1003-07 5 127 SCH160 10-3/4 273.1 5-3/4 146.0 SF AS 74.0 163.0

HUF1003-08 5 127 XXHVY 10-15/16 277.8 5-3/4 146.0 SF AS 76.5 168.7

Note: SC = Casting steel, SF = Forging steel, AS = Alloy steel.

If you are interested please contact us via sales@hammerunion.org.
