Thread protector is usually installed on the end of casing pipe and it plays the role in protecting the thread of casing pipe when casing pipe is removed in drilling and well repairing work. It can cut down the consumption and reduce operating cost. And part of the product is made from nanometer material. It offers reliable performance and it is easy to install and dismantle. So its using value is very high.

Thread protector can be divided into two kinds: quick release thread protector and inflatable thread protector. Both of them are used to protect the thread of pipe, but they are different in structure.

Quick release thread protector is composed of three parts: main body, link stopper and compressor bar. They are all made from polyurethane, making quick release thread protector resistant to oil, abrasion and corrosion. This kind of thread protector is widely used to protect rubber hose in the handling and transportation process.

Inflatable thread protector can be divided into two kinds: dismountable inflatable thread protector and integrated inflatable thread protector. Both of them are composed of two parts: pneumatic tire and outer shell. The pneumatic tire of dismountable inflatable thread protector can be taken out from outer shell and this is the difference between the two kinds of inflatable thread protector. Pneumatic tire is made from nitrile rubber and outer shell is made from polyurethane. And the outer shell of dismountable inflatable thread protector contains a steel shell, which is made from 20# steel. Inflatable thread protector is resistant to abrasion and corrosion and it has beautiful appearance.

A black quick release thread protector.

Quick release thread protector.An integrated inflatable thread protector in black and red.

Black and red integrated inflatable thread protector.

A red integrated inflatable thread protector.

Red integrated inflatable thread protector.A yellow and red integrated inflatable thread protector is on a chair.

Yellow and red integrated inflatable thread protector.

A yellow dismountable inflatable thread protector of 7 inch is on a wooden box.

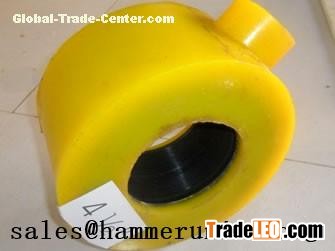

7 inch yellow dismountable inflatable thread protector.A yellow dismountable inflatable thread protector of 4.5 inch is on the floor.

4-1/2 inch yellow dismountable inflatable thread protector.

A red dismountable inflatable thread protector is on a wooden box.

Red dismountable inflatable thread protector.A black pneumatic tire and a yellow outer shell of dismountable inflatable thread protector are on the floor.

Dismountable inflatable thread protector pneumatic tire and outer shell.

The details of thread protector:

Structure:

Quick release thread protector: main body, link stopper and compressor bar.

Dismountable inflatable thread protector: pneumatic tire, outer shell and steel shell.

Integrated inflatable thread protector: pneumatic tire and outer shell.

Material:

Quick release thread protector: all components are made from polyurethane.

Dismountable inflatable thread protector: pneumatic tire is made from nitrile rubber, outer shell is made from polyurethane and steel shell is made from 20# steel.

Integrated inflatable thread protector: pneumatic tire is made from nitrile rubber and outer shell is made from polyurethane.

Quick release thread protector available size: 2-3/8", 2-7/8", 4", 4-1/2", 5", 5-1/2", 6-5/8", 7", 7-5/8", 8-5/8", 9-5/8", 10-3/4", 11-3/4", 13-3/8", 16", 18-5/8" and 20".

Inflatable thread protector working pressure: 0.5 MPa - 1.0 MPa (75 psi - 150 psi).

The specification of inflatable thread protector

Part No. Size Working pressure Inflation time Deflation time

inch MPa psi second second

THDPR-01 4-1/2 to 5 0.5-1 75-150 2 2-3

THDPR-02 5-1/2 0.5-1 75-150 2-3 3-4

THDPR-03 7 0.5-1 75-150 3-4 4-5

THDPR-04 9-5/8 0.5-1 75-150 5 6-7

THDPR-05 13-3/8 0.5-1 75-150 7-8 9-10

THDPR-06 18-3/8 0.5-1 75-150 8-9 10-11

THDPR-07 20 0.5-1 75-150 10 12-13

If you are interested please contact us via sales@hammerunion.org.
