Figure 50 hammer union is made from carbon steel. It is suitable for air, water, oil or gas of 500 psi cols working pressure and this is the reason why it is called figure 50 hammer union. It is fast and convenient to install and dismantle. And it has excellent exchangeability with reliable sealing. It is available in 4" and 5" with threaded connection or socket welded connection.

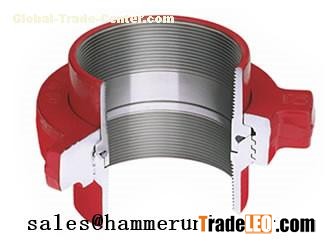

A figure 50 hammer union with red cover.

Figure 50 hammer union.

Features of figure 50 hammer union:

Fast and convenient to install and dismantle.

Reliable sealing.

Excellent exchangeability.

Resistant to oils and corrosion.

The details of figure 50 hammer union:

Cold working pressure: 500 psi.

Nominal pipe size: 5″ (127 mm).

Total length: 5-1/2″ (139.7 mm).

Nut radius: 5-1/4″ (133.35 mm).

Nut material: CF.

Subs material: SF.

Weight: 10.08 kg (23.8 lbs).

Available size: 4" and 5".

Connection type: threaded or socket welded.

If you are interested please contact us via sales@hammerunion.org.
