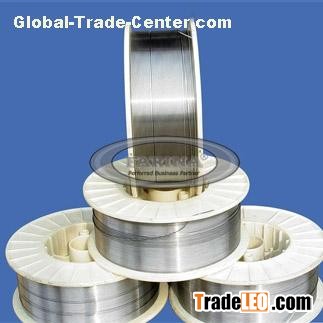

Flux-cored Welding Wire

Brand: FARINA

Application:

Self-shielded flux core wire is used for all-position welding,with little spatter,warming electric arc,easily moved slag and excellent appearance!

It is suitable for semi-automatic welding where the impact tenacity is not applicable. It is used for the thin plate of welding with single pass welding,overlap welding, angle welding and butt welding.

Dry extension of electrode should be controled between 15mm and 25mm.

Mechanic Property of Deposit metal

Item Tensile Strength (Mpa) Elogation(%) Impact Strength(Mpa)

AWS A5.20 E71T-GS 598 13 21

Chemical Composition of Deposit metal

Item C Si Mn S P AL

E71T-GS 0.20 0.16 0.76 0.01 0.015 1.6

Working Parameters

Working Weldingways 0.8mm 0.9mm 1.0mm

Current(a) Flat Welding

Horizontal Fillet Welding 40~110 40~130 50~180

Voltage(v) Flat Welding

Horiaontal Fillet Welding 15~18 15~20 18~22

Flux Cored Welding Wire E71T-1

Standard: ACCORD WITH:GB/T 10045 E501T-1

CORRESPonDING TO: AWS A5.20 E71T-1/JIS Z3313 YFW-C50DR

Brand: FARINA

Size: 0.8mm-1.2mm

Packing: spool wire

Application:

CO2 is the use of titanium-based flux-cored wire welding. Deposited efficient performance of all-position welding process better, legislation can also be welded down. Applicable to ships, pressure vessels,mechanical equipment,steel bridges,such as low carbon steel and 490MPa high strength steel welding class.
