Brand:Yishixun
Model:GS-C20S
MOQ:-0 -
Send Inquiry

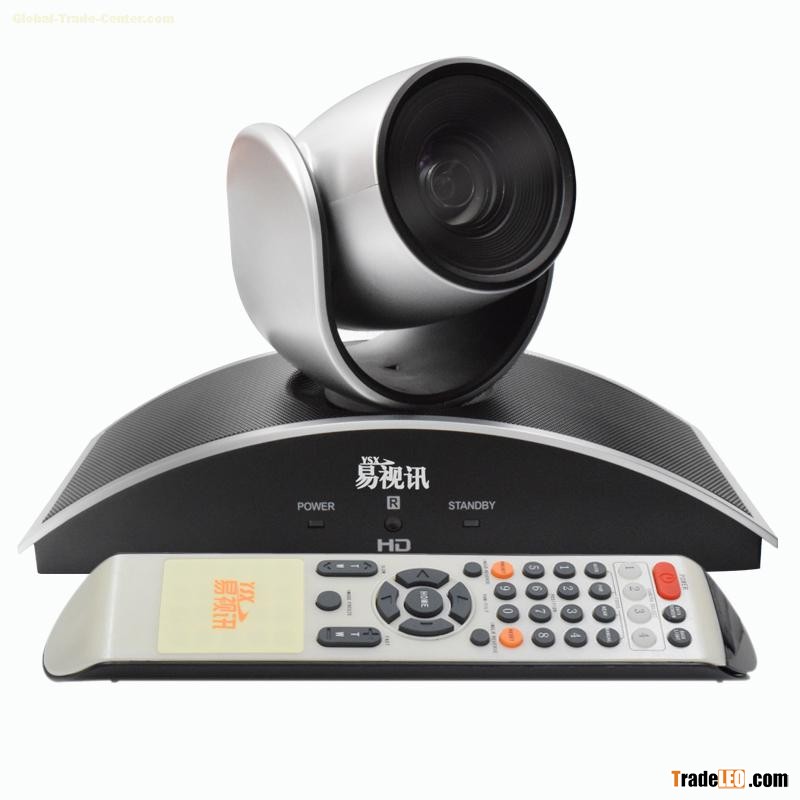

| Name. | 1080P HD Video Conference Camera |
| Brand | Keenhope technology YSX |
| Model. | GS-C20S |
| Interface | HDMI SDI AV |
| Lens. | 20X Optical Zoom,12X Digital Zoom |
| PTZ. | Horizontal rotation：±355°，Vertical rotation:±60° |
| Resolution | 1920*1080 60frames |
| Model | GS-C20S |
| Sensor | 1/2.8 of an inch type Exmor CMOS |
| Effective Pixels | 4.7 Million pixels |
| Zoom | 20 x optical zoom, SONY import movement |
| Digital Zoom | 12 x |
| FOCAL LENGTH | f=4.7mm(wide)to94mm(tele) |
| Aperture | F1.6 to F3.5 |
| Horizontal View Angle | 59．5°（wide end）---3.3°（tele end） |
| Exposure image | Automatic gain control/shutter priority, aperture priority/manual/brightness adjustment |
| Image focusing | Automatic/manual/a key trigger/infinity/macro |
| Minimum imaging distance | 10mm（wide end）---1000mm(tele end ) |
| Minimum Illumination | Standard mode: 30: 0.4Lx 60 frame: 0.8Lx High sensitive mode: 30: 0.1Lx 60 frame: 0.2Lx |
| White balance mode | Automatic/manual/ATW/indoor/outdoor/one-click/outdoor/sodium lamp mode automatically |
| Strong light inhibition | Automatic / manual |
| White Balance | Automatic/indoor/outdoor/manual |
| Focus Mode | Automatic / manual |
| Gain control | Automatic / manual |
| Picture effect | Automatic / color / black and white / negative |
| Backlight compensation | On / off |
| Image Freeze | Support |
| Mirror function | Level of support (mirror) |
| Image flip | Support |
| Black screen function | Support |
| WDR | D-WDR |
| Digital noise reduction | 2D Digital noise reduction |
| Electronic Shutter | 1/30s~1/10,000s |
| Digital slow shutter | Support |
| Contrast | Adjustable |
| Saturation | Adjustable |
| Fog function | Support |
| Edge illumination compensation | Support |
| Working temperature / humidity | ﹣10℃～50℃，10％RH～60％RH |
| Save the temperature/humidity | ﹣20℃～60℃，10％RH～80％RH |
| Velocity matching | According to the magnification lens decided to speed |
| Preset Position | Can set up a 255 preset |
| OSD menu | Through this menu to set camera function |
| Pan rotation angle | 355° |
| Tilt rotation angle | .-30°~+30° |
| Pan Speed | 1.5°~300°/S |
| Tilt Speed | 1.5°~300°/S |
| Signal System (SD) | NTSC/PAL |
| Video output(HD) | HD-SDI、HDMI、AV |
| Video output(SD) | Analog video output VBS |
| Power | DC 12V±10% 3A |
| Product weight | 1600g |
| Product size | 115mm*180mm*297mm |
