Brand:Yishixun
Model:YSX-680D
MOQ:-0 -
Send Inquiry

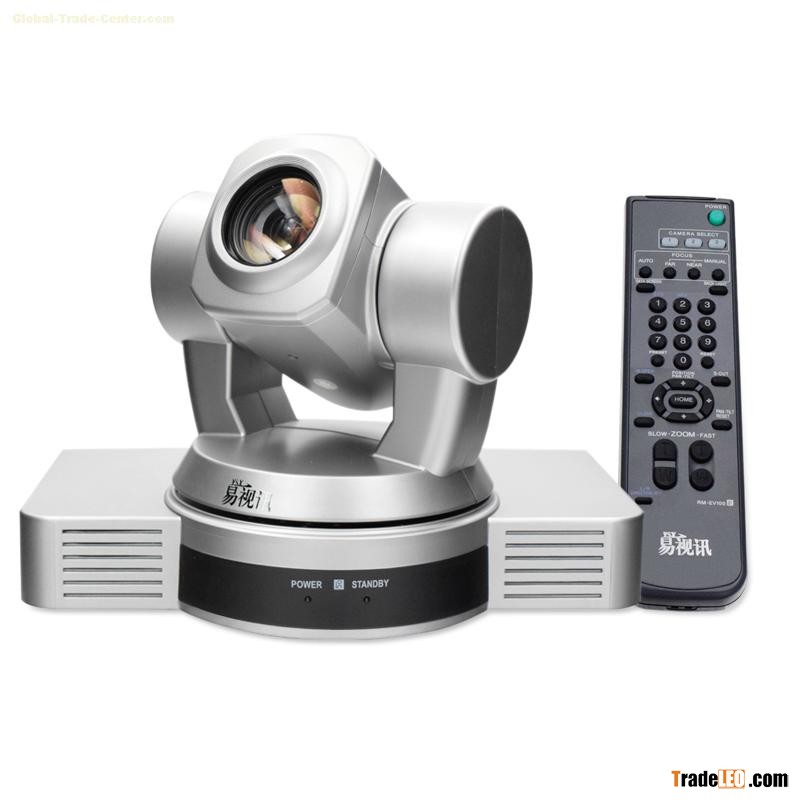

| Name. | 1080P HD Video Conference Camera |
| Brand: | Keenhope technology YSX |
| Model. | YSX-680D |
| Interface. | DVI, AV/SDI, HDMI (can be customized) |
| Lens.. | 30 x optical zoom |
| PTZ: | Horizontal rotation：±355°，Vertical rotation:±120° |
| Resolution | 1920*1080 60frames |
| Model | YSX-680D |
| Sensor | 1/2.8 of an inch CMOS |
| Effective pixels | 5 Million pixels (16:9) |
| Signal System HD | 1080p/60,1080p/50,1080i/60,1080i/50,1080p/30,1080p/25,720p/60,720p/50 |
| Signal system | NTSL,PAL |
| Lens | 30x optical zoom (f = 4.4 mm wide) ~ 88.0 mm (remote), F1.6 ~ F3.4 |
| Angle of View | 53.4°（W）～3.6°（T） |
| Focusing System | Auto / one button AF/ manual |
| Minimum Illumination | 0.5Lux |
| Exposure control | Automatic/manual/priority mode |
| Shutter Speed | 1/50～1/10,000s |
| Gain | Auto/Manual |
| White balance | Automatic/ATW/indoor/outdoor/one-click/manual |
| Image Effect | Color/black |
| Signal to Noise | >50dB |
| Pan Speed | Pan: +/- 355° (max. speed: 80°/s) |
| Tilt Speed | Tilt: -30° to +90° (max. speed: 60°/s) |
| Preset Position | Can set up a 255 preset |
| Video output HD | YpbPr、HDMI、HD-SDI |
| S D | VBS（RCA） |
| Control protocol | SONY VISCA、PELCO P/D |
| Control mode | RS-232C、RS-422/485 |
| Power | 12V DC(10.8～13.0V DC) |
| Consumption | Most 30W (DC 12V) |
| Operating Temperature | 0~40℃ |
| Storage temperature | .-10°C~+60°C |
| Product Size | (L)240×(W)155×(H)142mm |
| Product weight | 1550g |
| Supplied accessory | DC 12 v power adapter, IR remote control, operating instructions, the RS - 232 - c serial port line, off color component of the line |
