Brand:Yishixun
Model:YSX-790C
MOQ:-0 -
Send Inquiry

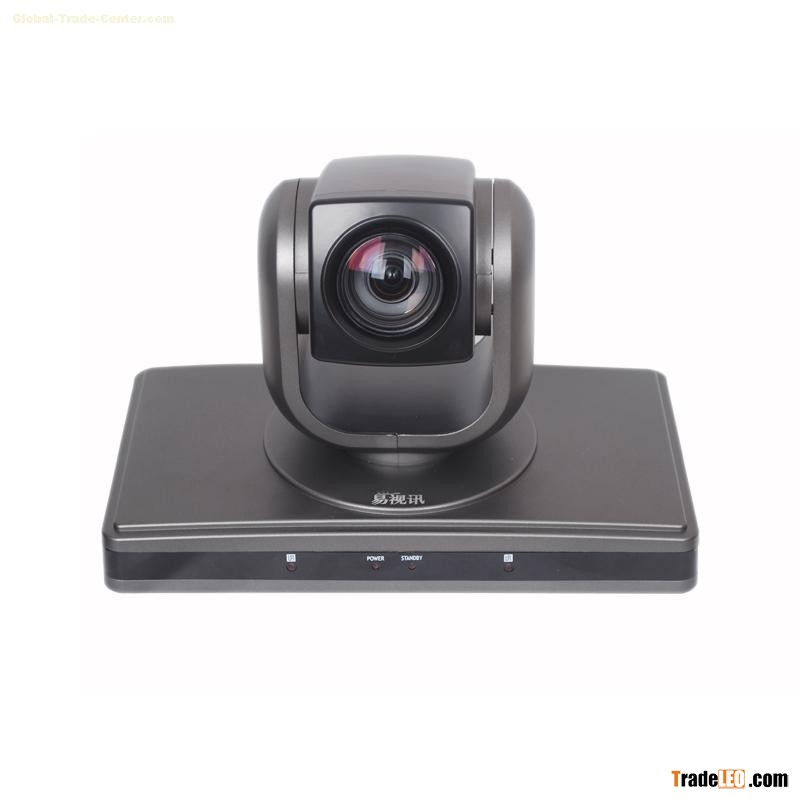

| Name. | 1080P HD Video Conference Camera |
| Brand | Keenhope technology YSX |
| Model. | YSX-790C |
| Interface. | DVI, AV/SDI, HDMI (can be customized) |
| Lens.. | 20X Optical Zoom,12X Digital Zoom |
| PTZ: | Horizontal rotation：±355°，Vertical rotation:±90° |
| Resolution | 1920*1080 50/60frames |
| Model | YSX-790C |
| Sensor | 1/2.7 CMOS 2Mega Pixel |
| Effective pixels | 3.9 Million pixels |
| Minimum Illumination | 1Lux at F1.6 |
| White balance | Auto/Manual |
| Gain | Auto |
| Back-light compensation | On/Off |
| Electronic shutter | 1/50～1/120,000S |
| Signal to Noise | ＞50dB |
| Focus | f=3.2-64.8mm F1.6-2.8 |
| Lens aperture | Auto/Manual |
| Zoom | 20X Optical Zoom,12X Digital Zoom |
| Angle of view | 48.4° |
| Video Output | DVI, SDI, HDMI (can be customized) |
| Video output mode | 1080P@60、1080P@30、1080P@25、1080P@24、 1080i@60、1080i@50、720P@60、720P@50 |
| Communication control interface | RS232 turn EIA RS - 422 / RS - 232 (two-way) |
| Communication control protocol | VISCA、PELCO-P、PELCO-D |
| Baud rate | 4800/9600bps |
| Patrol tours | 4 |
| Preset Position | 64 |
| Power-off Protection | Can protect the power before the automatic scanning or cruise state |
| Speed Matching | According to the magnification lens decided to speed |
| OSD menu | Through this menu to set camera function |
| Image Effect | Rotatable |
| Pan Speed | 1-200°/S |
| Tilt Speed | 1-150°/S |
| Pan Rotation Angle | 0-355° |
| Tilt Rotation Angle | 45 ° (up), 45 ° (down) |
| Automatic horizontal scan | Support |
| Boundary scan | 0-359 ° (programmable) |
| Remoter Control | IR wireless control P/T/Z |
| Environment Humidity | 0-95%RH |
| Operation Temperature | 0-50℃ |
| Power | DC12V,2A |
| Product Size | 250mm×140mm×154mm |
| Product weight | 1380g |
