Brand:Yishixun
Model:YSX-HD610
MOQ:-0 -
Send Inquiry

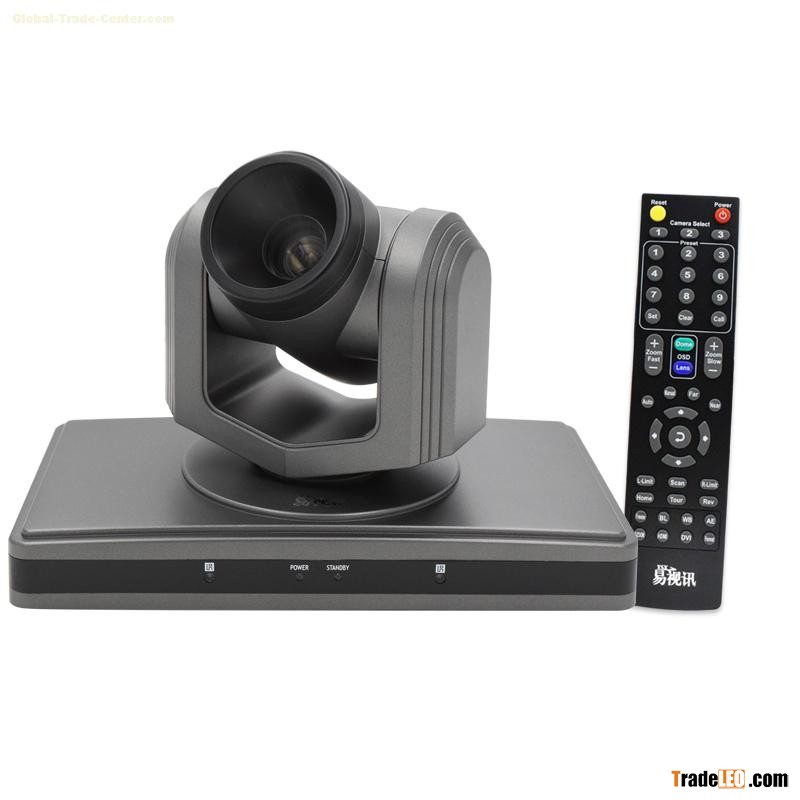

| Name | 1080P HD Video Conference Cameras |
| Brand | Keenhope technology YSX |
| Model | YSX-HD610 |
| Interface | USB3.0 |
| Lens | 10 x optical zoom |
| PTZ | Horizontal rotation：±355°，Vertical rotation:±135° |
| Resolution | 1920*1080 30frames |
| Model | YSX-HD610 |
| Sensor | 1/3 CMOS |
| Effective Pixels | 3.2 Million pixels |
| Minimum Illumination | Color: 0.1 Lux black and white: 0.1 Lux |
| White balance | Auto/Manual |
| Gain | AUTO |
| Backlight compensation | on/off |
| Electronic shutter | 1/30s~1 /10000S |
| Signal to Noise | >50dB |
| Lens Focus | f=5mm -50mm |
| Aperture | Auto/Manual |
| Lens zoom | 10 x optical zoom |
| Angle of View (H) | 72° |
| Video output | USB 3.0 |
| Video output mode | YUY2 | 1920x1080 30p, 1280x 72060p |
| Communication control interface | EIA/RS232C,EIA/RS485(Bidirectional) |
| Communication control protocol | VISCA,PELCO-D |
| Band rate | 9600/38400bps |
| Patrol Line | 4 |
| Preset Position | 64 |
| Speed matching | According to the magnification lens decided to speed |
| OSD menu | Access to OSD Menu and adjust camera module parameters |
| Image effect | Rotatable |
| Pan Speed | 1-200°/S |
| Tilt Speed | 1-150°/S |
| Pan rotation angle | 0-355° |
| Tilt Rotation Angle | 90 ° (up), 45 ° (down) |
| Pan scanning automatically | Support |
| Boundary scanning | 0-355 ° (programmable) |
| Remote Controller | IR Wireless Remote controller P/T/Z |
| Operation Temperature | 0-50℃ |
| Operating humidity | 0-95%RH |
| Power | DC12V,1.2A |
| Product Size | 250mm x 140mm x 154mm |
| Product weight | 800g |
