Brand:Yishixun
Model:YSX-1800A
MOQ:-0 -
Send Inquiry

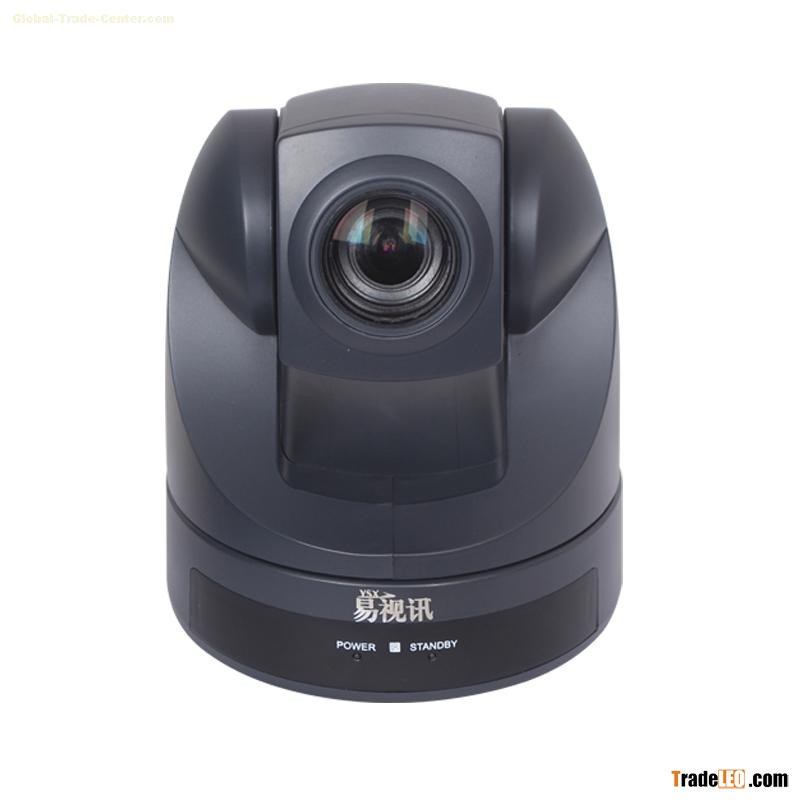

| Name | SD Video-Conferencing Camera |
| Brand | Keenhope technology YSX |
| Model | YSX-1800A |
| Interface | AV (USB) |
| Lens | 18 x optical zoom |
| PTZ | Horizontal rotation：±360°，Vertical rotation:±120° |
| Resolution | 720*576 25frames |
| Model | YSX-1800A( USB ) |
| Imaging Equipment | 1/3" Super HAD CCD |
| Effective pixels | 720(horitontal)× 576(vertical) |
| Signal system | PAL |
| Horizontal Resolution | 650 TVL |
| Synchronization | Internal |
| Lens | 18X zoom，F1.6(W)～3.0(T) f=5.0～90mm |
| Angle of view | 52.5°((wide-angle)～3.0°(far-end) |
| The shortest distance of object | 250mm(wide-angle)～1000mm(far-end) |
| Minimum Illumination | 1Lux (daylight), 0.1Lux (night)0 Lux(imfra LED on) |
| Exposure | Auto/Manual/exposure compensation, |
| Shutter Speed | 1/50~1/10000S,16 shelves |
| Gain | Auto/Manual (-3 ~ +28dB, 2 dB step) |
| White balance | Auto/Indoor/Outdoor//Manual WB |
| Signal to Noise | >48dB |
| Pan rotation angle | Pan: +/- 360° (max. speed: 80°/s) Tilt: -30° to + 90° (max. speed: 60°/s) |
| Preset Position | By remote control can be set up nine or 200, via the keyboard can be set to 255 |
| Image Effect | Image freezing, physical flip hoisting, mirror function |
| Analog Output | VIDEO and S-VIDEO VBS 1.0VP-P |
| Control terminals | RS-232C(8-pin DIN)/(VISCA)/RS-422(9-pin) (VISCA) |
| Baud rate | 9600bps、38400bps |
| Power | 10.8V~13.2V |
| Operating Temperature | 0℃～50℃ |
| Storage Temperature | .-20℃～+60℃ |
| Consumption | 12W |
| Product Size | 145×135×155mm |
| Product weight | 1200g |
| Supplied accessory | 12 DV AC power adapter, IR controller, USB Cable, RS232C cable, Ceiling bracket, Operation menu |
