Type

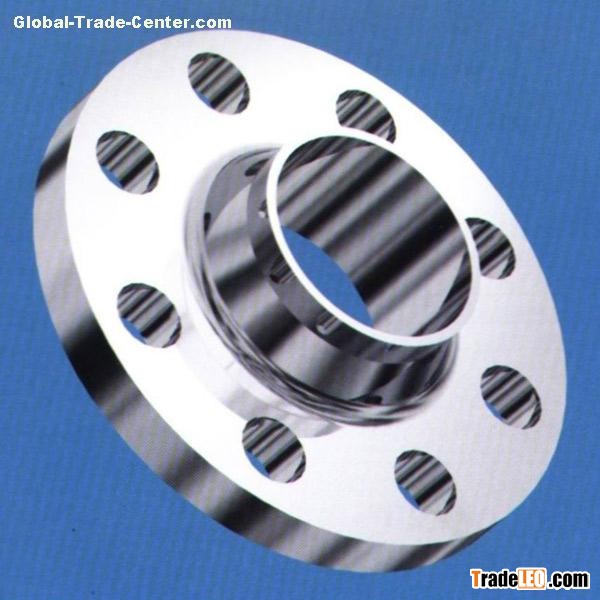

8" Flange WN RF 300Lbs

OD

1/2"-48"

Pressure

ANSI B16.5                                     1/2"-24" CL150,CL300,CL400,CL600,CL900,CL1500

                                                      1/2"-12" CL2500

ASME B16.47 Series A(MSS SP-44) 26"-48" CL150,CL300,CL400,CL600,CL900

ASME B16.47 Series B(API 605)       26"-48" 75LB,150LB,300LB

ASME B16.47 Series B(API 605)       26"-36" 400LB,600LB,900LB

Face

RF,MFM,TG,FF,RJ

Standard

ASME, GB, DIN, JIS

Material

A105, A182F5,F9,P11,F12,F22,F91, A182 F304(H),F304L,F316(H), F316L, F321(H)

Packing

Wooden Cases, Pallets or at requested

Application

Petroleum, Natural Gas, Electric Power, Shipbuilding, Pipe Projects etc.

Others

Special design available according to your request
