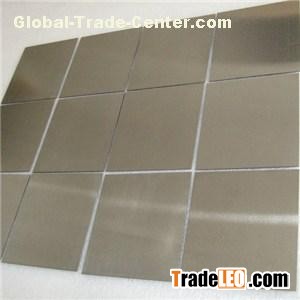

Baoji Refractory metal Developer Co.,Ltd is one of the leading China molybdenum plate manufacturers and suppliers,Website:http://www.rmd1994.de, and as a professional company we have productive factory, welcome to wholesale molybdenum plate, molybdenum plate products from us.²Range of use: —Heat tape —Reflective shield —Heat insulation screen —Vacuum coating equipment —High-temperature resisting boat —Cover of the sapphire growth furnace —Heating element in high-temperature furnace ²Processing methods to produce: —Hot rolling process —Warm rolling process —Cold rolling process ²Chemical Composition: BrandMo% Impurities% Each Element Content% Adding elements% Mo1≥99.95≤0.05≤0.01—RMo1≥99.94≤0.06≤0.02—TZM≥99.20≤0.11≤0.08Ti 0.40~0.55Zr 0.06~0.12C 0.01~0.04Mo3G≥99.33≤0.07≤0.01La 0.20~0.60 ²Specification:Thickness (mm)Width (mm)Length (mm) 0.01-0.0250-120200~500 >0.02-0.0350-12050~1000 >0.03-0.0450-24050~1000 >0.04-0.0650-24050~1000 >0.06-0.0950-24050~1000 >0.09-0.1350-24050~1000 >0.13-0.1550-20050~1000 >0.15-0.3050-20050~1000 >0.30-0.550-50050~1000 >0.5-0.750-80050~1000 >0.7-1.050-80050~800 >1.0-2.050-80050~800 >2.0-3.050-50050~800 >3.0-4.050-50050~800 >4.0-5.050-50050~800 >5.050-50050~800 Note:All the products can be supplied in according to customer’s requirement. ²Tolerance: Thickness(mm)Thickness Tolerance(mm)Width(mm)Width Tolerance(mm)III 0.01-0.02 ±0.002 ±0.00450-120±2 >0.02-0.03 ±0.003 ±0.00550-120±2 >0.03-0.04 ±0.004 ±0.00650-240±3 >0.04-0.06 ±0.005 ±0.00750-240±3 >0.06-0.09 ±0.006 ±0.00850-240±3 >0.09-0.13 ±0.008 ±0.0150-240±3 >0.13-0.15 ±0.01 ±0.0250-200±2 >0.15-0.30 ±0.02 ±0.0350-200±2 >0.30-0.5 ±0.03 ±0.0450-500±3 >0.5-0.7 ±0.04 ±0.0550-800±5 >0.7-1.0 ±0.05 ±0.0850-800±5 >1.0-2.0 ±0.06 ±0.1050-800±5 >2.0-3.0 ±0.08 ±0.1550-500±5 >3.0-4.0 ±0.10 ±0.2050-500±5 >4.0-5.0 ±0.12 ±0.3050-500±5 >5.0 ±8% ±10P-500±5 Note:Special demands on tolerance available.
