What is IPL?

IPL(Intense Pulsed Light) is a kind of photon therapeutic apparatus, also called IPL photo rejuvenation. It is widely used for skin rejuvenation, hair removal and pigmentation removal with the therapeutic mechanism of thermal selective effect. It is a kind of non-abrasive photodynamic therapy, making use of insignificant amount of intense pulsed light technology to conduct non-abrasive skin rejuvenation therapy with low energy and density, to achieve the purpose of rejuvenating and beautifying the skin.

Advanced Technology

1-AFT ( Advanced Fluorescence Technology )

SHR series are pretty safe, effect and comfortable platform in aesthetic and medical field.

The Advanced Fluorescence Technology can transform the uselss UV light to the useful wavlength we need,It can help to improve the output energy.

2-EDF Technology

EDF(Equally Distributed Fluence) technology can make sure the output energy is equally distributed in several pulses.Therefore the energy of every pulse is the same,effective and safe.

With EDF technology,in-motion operation can be achieved.Motion operation can accelerate the treatment to shorten the session time.Compared with tradition IPL,only 1/6 time will be needed to do the same treatment.It can be really time-saving.

3-Spectrum Optimization

AFT is a multi-spectrum pulsed light,which is a little narrower than traditional IPL. Since 60% patients can't afford or fear the pain caused by traditional IPL, so they refused to do IPL skin rejuvenation, pigmentation, hair removal, etc. However, AFT series devoted to solving this problem and built a pain-free treatment process. So far, AFT series have attracted more and more customers, especially for the skin type IV above.

We  use wavelength 570-950nm for skin rejuvenation and 650-950nm for hair  removal,  filtered  the  violet  light  and  infrared,  which  can  eradiate and absorb lots water from target skin, it doesn't have any side-effect to body.  It  is  better  than  traditional  IPL  wavelength  400-1200nm  and 610-1200nm.

Features:

1. Non-invasive and non-ablative treatment for skin.

2. Superior performance and patient comfort with no down time.

3. Virtually painless skin tightening technology without surgery.

4. High powered and fully adjustable pulse widths allow optimized results.

5. Simple touch-screen control and suggested settings facilitates treatment for the novice or experienced user.

6. Integrated surface cooling makes treatment safe and comfortable for the patient.

7. Lightweight treatment head makes treatment comfortable for the operator.

8. Quick and easy installation.

Applications:

1. Pain-free hair removal.

2. Skin tightening and rejuvenation.

3. Freckle, pigmentation removal.

4. Acne scar treatment.

5. Telangiectasias.

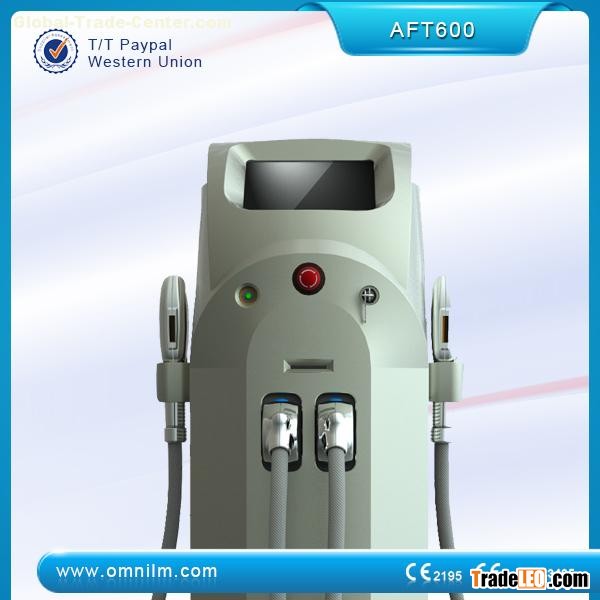

Model AFT-600

Light Source Pure Sapphire

Wavelengths 570-950nm for SR, 650-950nm for HR; 420-950nm for acne (Optional)

Power 2400W

Spot Size 8*40mm for SR 15*80mm fro HR

Xenon Lamp Germany imported

Fluence 1-7J/cm2 for HR, 1-12J/ cm2 for HR

Timer 1S, 3S & 30S for HR; 1S, 3S & 12S for SR

Frequency 3Hz for HR, 2Hz for SR

Intergrated cooling  1 - 4 °C

Display 12.1'' colorful touch screen

Calibration Automatic Calibration

Water cooling circulation Monitored In-scene

Work environment Indoor use only
