1. metal of neodymium motor magnet: Made from ND, Fe, B, and other metal elements. It is with strong magnetism, good coercive force
2. Advantage: The most powerful and advanced commercialized permanent magnet today. We newland has with experience with more than 8 years in this field.
We focus on sintered NdFeB magnet and develop it under experienced engineer and passionate&studious sales team.

3. Physical advantages:
This material is hard, brittle, and it is easy to get corroded, but in order to protect the surface, we have lots of surface treatment, like Nickel, Nickel-Copper-Nickel. Znic, Black&Grey epoxy coating, Aluminium coating, Tin, Tin, silver, etc coating.
It is with high stability even it is under high temperature, the working stability is under 80degereeC for high Hcj. The temperature coefficient
S-0.09— 0.13% of Br, and-0.5-0.8%/degree C of Hcj

4. Properties of neodymium motor magnet: From 33MGOe to 52MGOe, and we are able to control the magnetic properties within the range as you demanded, like SHT, UHT, L-SHT, EHT such high stable properties could be produced as per your industrial application.
5. Grades: N35, N38, N52, From N35SH to N45SH, from N30SH to N40UH, from N30EH to N38EH, these high Hcj magnets quality are controlled by strip casting and HDDR technology in our factory.

6. Specification:
Any shapes that you designed could be processed, Block, Disc, Segment, Ring, Horseshoe shape, block with concave holes, Disc with countersink etc. Your design will be acted as long as you have.

7. Application
NdFeB magnet are widely used in important field, you maybe interested if you have your project presently

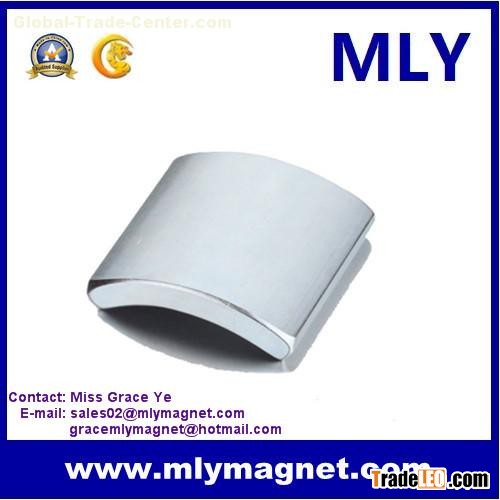

AC, DC, senvo, motors(with segment magnets)
Speaker parts(with ring magnet)
Sendors part
Magnetic coupling(with segment magnets)
Magnetic chuck(with big blocks magnet)
Security systems
Magnetic separators
Filters

Contact: Ms. Grace Ye
