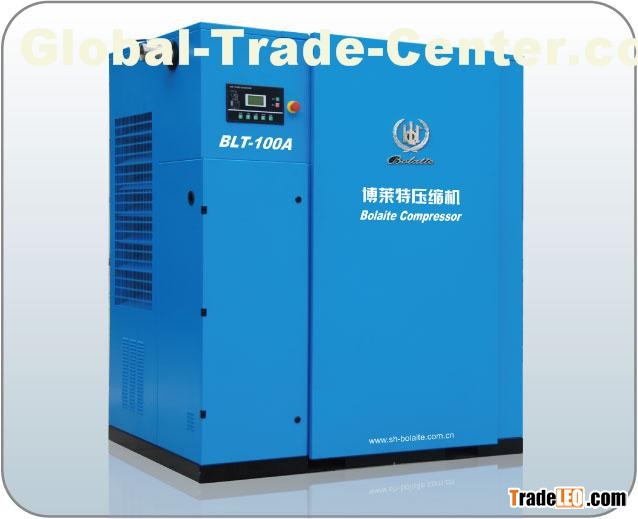

Brand:BLT-100A
Model:-
MOQ:1 Sets
Send Inquiry
| Model |
| BLT-100A | |
| Air delivery / Working pressure | m3/min/Mpa | 13.50/0.7 | |
| 13.00/0.8 | |||
| 11.80/1.0 | |||
| 10.00/1.2 | |||
| No of compression stage | Single stage compression | ||
| Cooling model | A-Air cooling | ||
| Discharge temperature | °C | ≤The environment temperature +15°C | |
| Noise Level | dB(A) | 72±2 | |
| Transmission mode | Belt transmission | ||
| Power supply | V/Ph/Hz | 380/3/50 | |
| Motor power | KW | 75 | |
| Stating model | Y- Transformation Start | ||
| External dimensions | L | mm | 1585 |
| W | mm | 1170 | |
| H | mm | 1800 | |
| Weight | Kg | 1260 | |
| Exhaust pipe diameter | inch | G2” | |
| Inlet pipe diameter | inch | G3/4” | |
