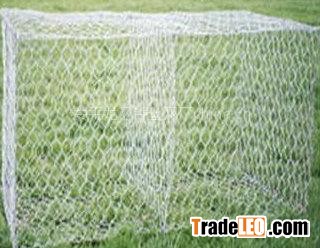

Gabion Box specification:
Material 0f Stone Gabion: high galvanized low carbon steel wire, the quality and technic as following:
A, Gabion Box is made of high galvanized low carbon steel wire or intertwisted wire by double intertwist with machine or forming hexagonal structure. The quality conforms to BS443, BS1052.
B, resin film (PVC,PE) conforms to ASTM D412,ASTM D719
C, Gabion Box material is supported by ISO9001:2000
D, base on international standard of EN 10223-3
Gabion Box normal size:1.5x1x1m, 2x1x1m, 3x1x1m, 2x1x0.5m, 4x1x1m, 3x2x1m, 4x2x1m (any sizes can be design as per the clients' requirement.)
Opening
| Opening (mm) | Wire dia(zinc coated wire)(mm) | Wire dia(PVC wire)ID/OD(mm) | Max width (m) |
| 60x80 | 2.0-2.8 | 1.6/2.6-2.2/3.2 | 4 |
| 80x100 | 2.0-3.2 | 2.0/3.0-2.8/3.8 | 4 |
| 80x120 | 2.0-3.2 | 2.0/3.0-2.8/3.8 | 4 |
| 100x120 | 2.0-3.4 | 2.0/3.0-2.8/3.8 | 4 |
| 100x150 | 2.0-3.4 | 2.0/3.0-2.8/3.8 | 4 |
| 120x150 | 2.0-4.0 | 2.0/3.0-3.0/4.0 | 4 |
