5.5kW Paper Board Batten Shaping Machine Insulation Processing Machines



A: Usage:

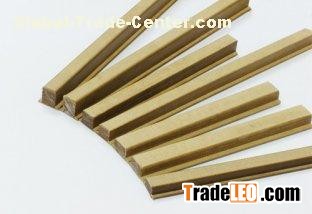

To slit batten (cardboard) or process “T”, trapeze and rectangular type etc. batten for transformer’s insulators.

B: Equipment components:

Worktable, support and transmission device, feeding mechanism, milling and chamfering devices, dust collection device (optional), electrical control system

C: Processing procedure:

1. Slitting: to cut batten (cardboard) (Max. Width 120mm) lengthwise into strips (Max. 5 strips) with saw bits (Max. 6 saw bits).

2. Shaping without bottom surface: feed---mill and chamfer left surface---mill and chamfer right surface---mill and chamfer top surface---finished product.

3. Shaping with bottom surface: feed---mill and chamfer bottom surface ---mill and chamfer left surface--- mill and chamfer right surface--- mill and chamfer top surface---finished product.

D: Specifications:



Diameter of tool spindle

φ40mm

Max. Width of feeding batten (cardboard)

120mm

Slit width of batten (cardboard)

5-30mm

Thickness of batten (cardboard)

“T” and trapeze type batten

5-15mm

Rectangular type batten

5-25mm

Length of batten (cardboard)
