12kW Coil 6-headed Hot-Press Electric Motor Manufacturing Equipment

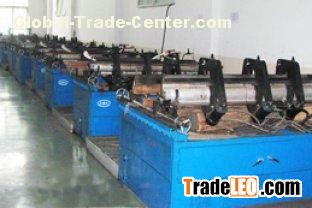

Coil 6-headed Hot-Press

Specifications:

1. Electric heating power 12kW, max. temperature 250, temperature adjusted by thyristor with FUJI-brand temperature meter. Precision error of meter is ±1, and workpiece error is ±7.5.

2. Oil pressure 6Mpa, 6.9 mt each edge (resultant force of 3 pressure heads).

3. Adopting the process of automatic prepressurization (low pressure), automatically exerting full pressure after 5-10 minutes.

4. Opening of coil: 190-850mm, length of straight line of coil: 1200mm.

5. Max. sectional area: 32×65mm².

6. Length of mould: 1650mm, length of effective heating area: 1200mm.
