CrWMn/1.2419/ SKS31 Die Steel
Specifications
CrWMn Die Steel

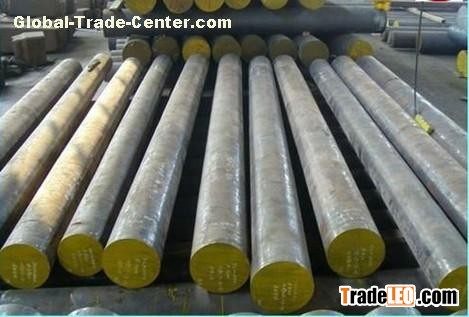

1. Type: round bar, plate
2. I.D.: 3-1500mm
3. Thickness: 3-180mm
Die Steel is mainly used for manufacture of cold-work dies with high abrasive resistance and small shock load. SMC is delighted to provide wide range of alloy steel to the customers; we also accept customization according to your requirement.
1. Type: round bar, plate
2. I.D.: 3-1500mm
3. Thickness: 3-180mm
Specification of CrWMn Die Steel:
1. Standard Comparison of Die Steel
| Class | GB | AISI/ASTM | DIN | JIS |
| Cold Formed Die Steel | 9SiCr | L3 | 1.2067 | |
| 9Cr2 | | 1.2056 | | |
| 9Mn2V | O1 | 1.2842 | SKS3 | |
| CrWMn | | 1.2419 | SKS31 | |
| 9CrWMn | O1 | 1.2510 | SKS3 | |
| 7CrSiMnMoV | | | | |
| Cr12 | D3 | 1.2080 | SKD1 | |
| Cr12MoV | D2 | 1.2601 | SKD11 | |
| Cr12Mo1V1 | D2 | 1.2379 | SKD11 | |
| Hot Formed Die Steel | 4CrW2Si | | 1.2541 | SKS41 |
| 5CrW2Si | S1 | 1.2542 | | |
| 6CrW2Si | | 1.2550 | SKS44 | |
| 5CrMnMo | 6G | | SKT3 | |
| 5CrNiMo | 6F2 | 1.2713 | SKT4 | |
| 8Cr3 | | | | |
| 3Cr2W8V | H21 | 1.2581 | SKD5 | |
| 4Cr5MoSiV | H11 | 1.2343 | SKD6 | |
| 4Cr5MoSiV1 | H13 | 1.2344 | SKD61 | |
| Plastic Die Steel | 3Cr2NiMo | 718 | | |
| 3Cr2Mo | P20 | 1.2312 | PDS-3 | |
| | 3Cr2MnNiMo | P20+Ni | 1.2738 | PDS5S |
