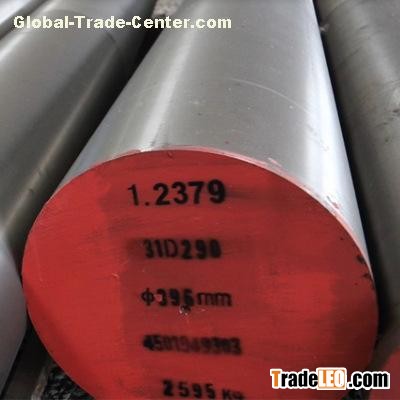

D2/1.2379/SKD11/Cr12Mo1V1 (cold work die steel)

Size Available:
Plate bar: Thickness 40-350mm
Width 100m-1000mm
Length 2m—6m
Round bar: Dia. 80---600mm

Listing Description
1. EAF-LF-VD-ESR Forged
2. ISO 9001 certificated
3. Factory direct sales steady supply
4. Higher resistance to heat checking

Detailed Description

Principal Design Features
1. It is a high- carbon and high- chromium alloy tool steel.
2. It has good wear resistance and size ability after heat treatment
3. It is suitable for making long-life high-precision cold-work dies.

Applications
High Wear Cold Work Die Steel D2/1.2379/SKD11 good toughness and wear resistance,
suitable to make the blanking dies with a thickness over 6mm, drawing die etc.

Chemical Composition(for reference only):
Standard（GB/T1299-2000）：
C: 1.40/1.60 Mn: ≤0.60 Si: ≤0.60 Cr: 11.00/13.00 Mo: 0.70/1.20 V: 0.5/1.10 Cu：≤1.00 P: ≤0.03 S: ≤0.03

Equivalent Grades:
GB：Cr12Mo1V1
DIN：1.2379
ASTM：D2
JIS：SKD11
BS：BD2

Quality assurance:
We are the ISO 9001:2000 authentication enterprises and we can provide the enterprise's quality written guarantee for all the exported products.

Shaping: Hot forged / Hot rolled

Surface condition: Black surface/ turning / milling / peeling / polishing.

Weight(kg): Round bar=0.00617*R*R*L
                  Flat bar=0.00785*T*W*L
