Brand:Baosteel
Model:Cr12MoV
MOQ:1 Metric Ton
Specifications

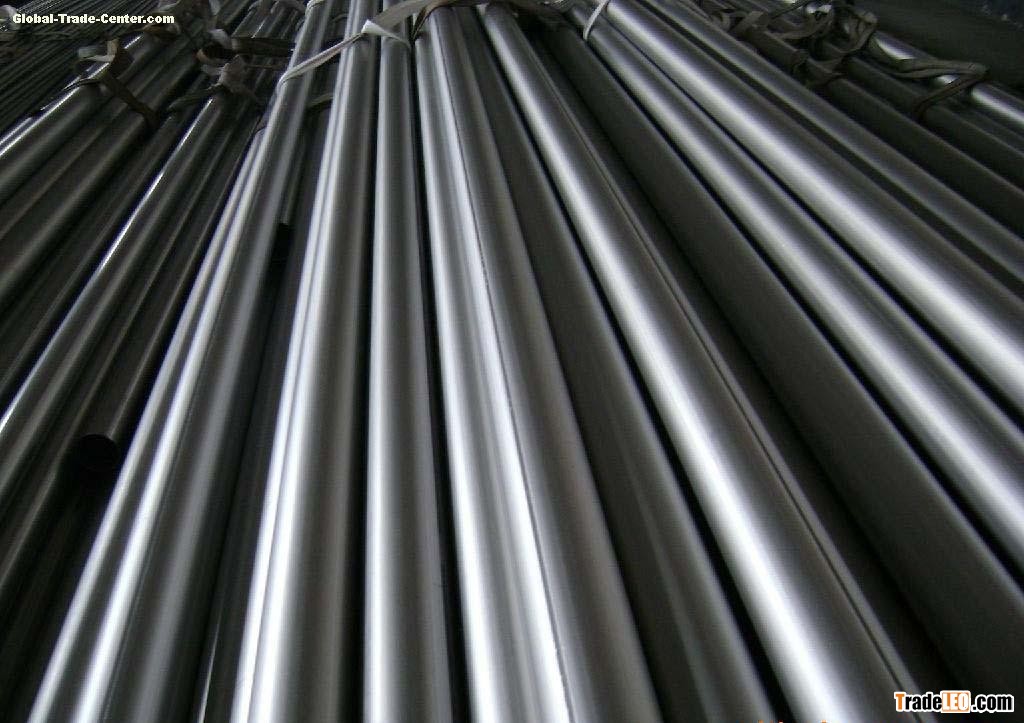

Cr12MoV round steel
1. High hardenability, when quenching volume change little
2. High wear resistance and good mechanical
For ring,
For bar, dia 40mm-500mm.
For block, 20mm-200mm thick, 100mm-610mm wide, 0mm-5000mm long
1.Cr12MoV/ D2/X165CrMoV/BD2/Z200CD12/SKD11/X12M/1.2601/x165crmov12/STD11/x165crmow12ku/2310/x160crmov12 round steel
2.Cr12MoV have high hardenability,300-400mm or less section completely hardenability ,when the temperature get to 300~400°C still have good hardness and wear resistance
3.Used to make a larger section ,complex shape, withstand greater impact load molds and tools
such as complex shape of the punching concave mold, complex mold insert ,cold extrusion die, cold-cut scissors, circular saws, standard tools, measuring tools, etc
4.Chemical Composition (%):(For reference only)
| C | Si | Cr | V | Mo | S | P | Mn |
| 1.45~1.70 | ≤0.4 | 11.00~12.50 | 0.15~0.30 | 0.40~0.60 | ≤0.030 | ≤0.030 | ≤0.40 |
5. Physical properties
Cr12MoV critical temperature
| Critical point | Ac1 | Ac3 | Ar1 | Ms |
| temperature(approximation)/°C | 810 | 1200 | 760 | 185 |
