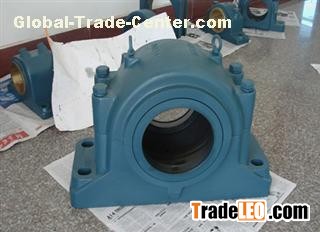

This is the most common type of mounted ball unit. The rib at the bottom of the housing mounting section provides for a robust unit that can withstand great loads from any direction. it is used for applications with severe loading and shock load conditions. Tapered-bore style units are offered individually and adapters are sold separately.
- Item: UCP205-14 Bearing
- Type: Pillow Block Mounted Bearing
- Bolt Size: 3/8"
- Basic Load (Cr): 14 KN
- Basic Load (Cor): 7.85 KN
- Bearing No: UC205-14
- Quantity: One bearing
| Dimensions (Inches) | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| d | H | L | A | J | N | N1 | H1 | H2 | L1 | B | S |
| 7/8" | 1-7/16" | 5-1/2" | 1-1/2" | 4-1/8" | 1/2" | 23/32" | 1/2" | 2-25/32" | 1-11/16" | 1.343" | 0.563" |
