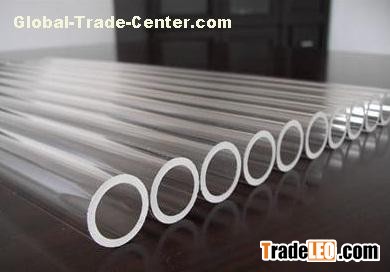

We can supply quartz tube, large diameter quartz tube and wall thickness of large diameter (4-10 mm wall thickness) transparent quartz glass tube, large diameter filter UV, ozone, low hydroxyl (OH<2ppm) and a light source with a quartz tube, quartz glass rod (OD1mm-60mm), quartz glass, quartz prism, the polygonal quartz prism (according to customer requirements processing customized) half polished rod, quartz glass (quartz beaker, quartz crucible, quartz dish and quartz evaporating dish, crucible protecting cover a variety of quartz products), quartz tube cutting, burning mouth, sealing, grinding and other special-shaped processing. According to customers drawings or sample processing custom.
Standard Quartz Tube Sizes
| ØNominal OD mm | Nominal ID mm | Thickness of Wall | Tolerance +/- mm |
| 2* | 2.0 & 1.0 | 1.0 & 2.0 | 0.2 & 0.2 |
| 3* | 2.0 & 1.0 | 1.0 & 2.0 | 0.2 & 0.2 |
| 4* | 2.0 &1.4 | 1.0 & 1.3 | 0.2 & 0.2 |
| 5* | 3.0 & 2.4 | 1.0 & 1.3 | 0.2 & 0.2 |
| 6* | 4.0 & 3.4 | 1.0 & 1.3 | 0.2 & 0.2 |
| 7* | 5.0 & 4.2 | 1.0 & 1.4 | 0.2 & 0.2 |
| 8 * | 6.0 & 5.2 & 4.2 | 1.0 & 1.4 & 1.9 | 0.2 & 0.2 & 0.4 |
| 9 * | 7.0 & 6.2 & 5.2 | 1.0 & 1.4 & 1.9 | 0.2 & 0.2 & 0.4 |
| 10 * | 8.0 & 7.2 & 6.2 | 1.0 & 1.4 & 1.9 | 0.2 & 0.2 & 0.4 |
| 11 * | 8.6 & 8.2 & 7.2 | 1.0 & 1.4 & 1.9 | 0.2 & 0.2 & 0.4 |
| 12 * | 9.6 & 9.2 & 8.2 | 1.0 & 1.4 & 1.9 | 0.2 & 0.2 & 0.4 |
| 13 * | 10.2 & 9.0 | 1.4 & 2.0 | 0.2 & 0.4 |
| 14 * | 11.2 & 10.0 | 1.4 & 2.0 | 0.2 & 0.4 |
| 15 * | 12.2 & 11.0 | 1.4 & 2.0 | 0.2 & 0.4 |
| 16 * | 13.0 & 12.0 | 1.5 & 2.0 | 0.3 & 0.4 |
| 17 * | 14.0 & 13.0 | 1.5 & 2.0 | 0.3 & 0.4 |
| 18 * | 15.0 & 14.0 | 1.5 & 2.0 | 0.3 & 0.4 |
| 19 * | 16.0 & 15.0 | 1.5 & 2.0 | 0.3 & 0.4 |
| 20 * | 17.0 & 16.0 | 1.5 & 2.0 | 0.3 & 0.4 |
| 22 | 19.0 & 18.0 | 1.5 & 2.0 | 0.3 & 0.4 |
| 24 | 21.0 &19.6 | 1.5 & 2.0 | 0.3 & 0.4 |
| 26 | 22.8 & 21.6 | 1.6 & 2.2 | 0.3 & 0.4 |
| 28 | 24.8 & 23.6 | 1.6 & 2.2 | 0.3 & 0.4 |
| 30 | 26.8 & 25.6 | 1.6 & 2.2 | 0.3 & 0.4 |
| 32 | 28.6 & 27.6 | 1.7 & 2.2 | 0.3 & 0.4 |
| 34 | 30.6 & 29.6 | 1.7 & 2.2 | 0.3 & 0.4 |
| 35 | 32.5 & 31.5 | 1.7 & 2.2 | 0.3 & 0.4 |
| 36 | 32.5 & 31.5 | 1.7 & 2.2 | 0.3 & 0.4 |
| 38 | 34.5 & 33.2 | 1.7 & 2.2 | 0.3 & 0.4 |
| 40 | 36.4 & 35.2 | 1.8 & 2.4 | 0.3 & 0.4 |
| 42 | 38.4 & 37.2 | 1.8 & 2.4 | 0.3 & 0.4 |
| 44 | 40.5 & 39.2 | 1.8 & 2.4 | 0.3 & 0.4 |
| 46 | 42.5 & 41 | 1.8 & 2.4 | 0.3 & 0.4 |
| 48 | 44.5 & 43 | 1.8 & 2.4 | 0.3 & 0.4 |
| 50 | 46.5 & 45 | 1.8 & 2.6 | 0.3 & 0.4 |
| 55 | 51 & 50 | 1.9 & 2.5 | ±0.7 |
| 60 | 56 & 54.5 | 2 & 2.8 | ±1 |
| 65 | 61 &59.5 | 2 & 2.8 | ±1 |
| 70 | 65.5 & 64 | 2.2 &3 | ±1 |
| 75 | 70.5 & 69 | 2.2 &3 | ±1 |
| 80 | 75 & 73.5 | 2.4 &3 | ±1 |
| 85 | 80 & 78.5 | 2.5 & 3 | ±1 |
| 90 | 85 & 83 | 2.5 & 3.5 | ±1 |
| 95 | 90 & 88 | 2.5 & 3.5 | ±1 |
| 100 | 94 & 92 | 3 | ±1.5 |
Iterm for Your Reference
FOB Price :0.45 ~ 42/ Piece ( Negotiable )Get Latest Price.
Minimum Order: $40 Price.
Packaging Detail:bulk PE bag.
Delivery Time:14 days.
Supplying Ability:3000 Piece / Day.
Payment Type:T/T, Western Union, Other.
