Brand:highborn
Model:HB
MOQ:10 Pieces

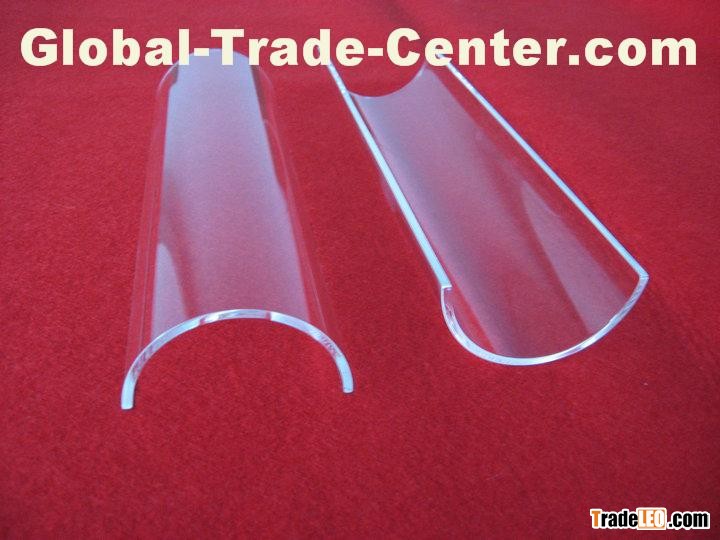

half quartz tube with edge polishing /arc quartz tube/half circle shape quartz pipe
Clear half quartz tube
1.no bubble, no air line
2.OD1.5-300mm,
3.heat resistance
Wall thickness up to your requested
High Corrosion Resistance
high quality and best price
Further processing of half quartz tube
Flame polishing, optical polishing, grind, general polishing. two sides polishing, one side polishing and the other side grind. We can process clear quartz sheet as your requirement
1. Material properties
High Corrosion Resistance
High thermo-stability and anticorrosive
Transmission of visible light>90%
Working temperature: 1100°C
2. Thickness: 0.5-30mm
3. Use Widely used in Medical, Electronics instrument, Scientific research, Optical industry etc.
4.Some date of clear quartz disks we supply:
| Purity | Total Impurities, including Al, Fe, Ca, Mg, Ti, Cu, Ni,Co, Mn, k, Na, Li, B<35ppm |
| Thermal Data | Annealing Point Strain Point Softening Point Melting Point Expansion Index |
| 1120°C 1210°C 1570°C 1730°C 5.5×10-7/°C | |
| Operation Temperature | Short-term Long-term |
| 1300°C 1100°C | |
| Mechanical Data | Rigidity Modulus Density Mohs Hardness Young`s Modulus Compression Strength Poisson Ratio Elongation Strength |
| 3.1×104Mpa 2.2/cm3 6 7.2×104Mpa >1.1×103Mpa 0.17 48Mpa |
We can make products according to the requirements of our customers.
pls feel free to contact wenna by Email: hbquartz at cnhighborn dot com
