Brand:highborn
Model:HB
MOQ:10 Pieces

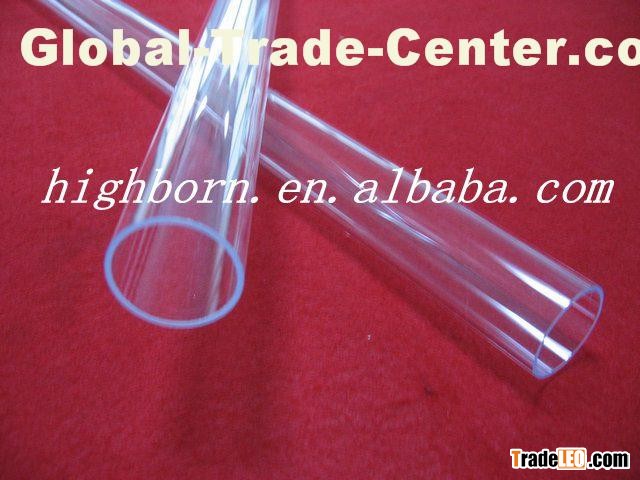

Quartz glass pipe/quartz glass tubing/glass tube
Features:
It is produced on the basis of pure quartz glass, mixed with 100-200ppm
of Tio. Colorless on surface, cut ends appear as light purple color.
The products able to stop the ultraviolet radiation before 220nm and
253.7nm ultraviolet radiation wavelength through rate as above 70%.
This wave length ultraviolet radiation has strongest disinfectant
| OD(mm) | W.T(mm) | Length(mm) |
| 12±0.2 | 1±0.1/0.2 | 0—1600 |
| 15±0.3 | 1±0.1/0.2 | 0—1600 |
| 19±0.3 | 1.2±0.2/0.3 | 0—1600 |
| 25±0.5 | 1.3±0.3 | 0—1600 |
Chemical composition (ppm)
| AL | Fe | K | Na | Li | Ca | Mg | Cu | Mn | Cr | B | Ti |
| 5-12 | 0.19-1.5 | 0.71-1.6 | 0.12-1.76 | 0.38-0.76 | 0.17-1.23 | 0.05-0.5 | 0.05 | 0.05 | <0.05 | <0.1 | <1.0 |
Physical Properties
| (g/cc)Density20 °C kg.m-3 | 2.2 |
| Degree of Hardness Moh’s Scale | 5.5-5.6 |
| Softening point(degree) | 1683 |
| Annealing point | 1215 |
| Defoamation Point | 1120 |
Application:
widely apply to sterilization, water treatment etc.
other quartz tubes
We also produce Milky White Quartz Tube,Clear quartz tube, Red quartz tube, Translucent Quartz Tube, , UV block quartz tube, Gold coated quartz tube etc.
