Brand:MINGDA
Model:Glitar 5
MOQ:-0 -

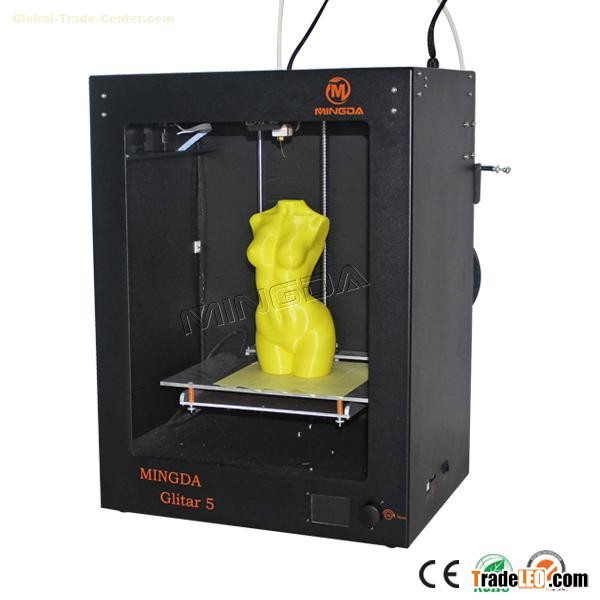

Mingda Highlights of Glitar 5 3D Printer
1.Dual CPU
2.Multi Language
3.Full Steel framework
4.High Speed 250mm/s
5.High Accuracy 0.04-0.2mm
6.Large Printing Size 300*200*400mm
7.Linux/Windows/OSX,Stl/Obj
8.Positional Accuracy:x/y Axis 6m,z Axis 1.5m
9.Max Model Volume:22L
Detail of Glitar 5 3D Printer
1.2 New ARM X2 mainboard,100 MHZ ARM processor
2.A new digital current management technology precision control
3.5 axis, 1/32 micro stepping motor control
4.LCD multilingual support Chinese support, knob button. (interface upgrade services regularly issue UI )
5.Speed up new XYZ structure under the condition of twenty percent accuracy
6.Software control atmosphere more light, can upgrade WIFI (optional)
7.The fuselage is made of 2 mm steel plate, laser seal welding, plate overall forming, to ensure the smooth processing
8.The security silicone hot bed technology
9.High standard of the lacquer bake process
10.Biggest SD Card 32GB
Parameters of Glitar 5 3D Printer
| Brand | MINGDA |
| Processor | Dual core |
| Motherboard | 32 Subdivision high speed motherboard |
| Motor | 57 stepper motor |
| Language | Multi-language |
| Max printing size | 300*200*400mm |
| Max model volume | 22L |
| Extruder | Single |
| Nozzle | 0.4mm |
| Accuracy | 0.04-0.2mm adjustable |
| Max Printing Speed | 250mm/s |
| Compatible material | 3.0mm ABS/PLA filament |
| Operating Temperature | 15-55C |
| Storage Temperature | 0-75C |
| Meterail | Stainless steel |
| Interface | SD card read directly or connect USB cable with PC |
| Certificate | CE, ROHS, UL |
| Dimension | 450x350x560mm |
| Weight | 40kg |
Specification of Glitar 5 3D printer
1.Software Package:MINGDA V1.0
2.Compatibility:Linux,Windows and OSX
3.Support file type:stl,obj
4.Input voltage: 220 v (please note the grounding)
5.Input power supply: 5A
6.Connection: USB, support SD card printing directly
7.Material: new modified PLA, support the common PLA and ABS
8.Filament Diameter:3 mm
9.Continuously Working 48 hours
