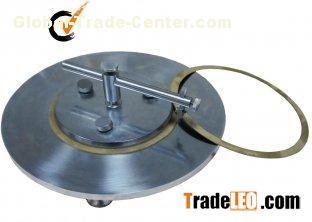

Autotrainsmission Friction Plate Cutting Clamp Rebuliding Equipment Description:

Autotrainsmission Friction Plate Cutter is a novel cutting platform to cut friction plates on locking disks of torque converter. It can quickly cut friction plates into customized sizes with precision and easy operation.

Technical Characteristics:

1. Quick cutting of friction plates in customized sizes on request, with inner and outer diameters freely adjusted

2. Smooth cutting, cut friction plate rings in equal thickness, without nicks or scrap

3. Able to make utmost use of raw materials of friction plates, with cut internal and external rings applicable to different torque converters

4. Materials are adopted with conditioning and blackening surface finishing; portable centering and rotary type structure, size cutting as precise as +-0.1mm

5. Cut friction plates can be bonded directly with torque converter for use

6. Scope of application: paper-based friction plates, carbon-based friction plates and compound friction plates

7. Skid-proof tripod base makes cutting process more stable in varied working environment

8. The minimum and maximum inner cutting diameters are 168mm and 330mm respectively.

9. Graduation line is available on cutter shaft for direct measurement of cut length.

Note: Abnormal sound and infirm adhesion may occur as friction plate rubs with the inner side of torque converter when oversized cutting is made; undersized cutting may influence the locking quality, thus causing skipping.


Power    no external power is required

Weight	Friction Plate Cutting Clamp 9.5KG
Size	36*36*13 cm
Place of Origin	Guangzhou China (Mainland)
Brand Name	Ray Technology Solutions
Packaging Details	wood base & wrapping stretch membrane
Warranty	12 months
Minum Order Quantity	1 pcs
