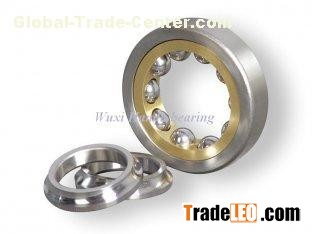

High precision angular contact ball bearingsof 71824C Single Row Bearings For Radial Load And Axial Load 71800series

Feature:

    When the single-row angular contact ball bearing is carrying the radial load, they will be a component of force in the axial direction. Therefore it is suggested that two of there bearings be applied in back-to-back or face-to-face arrangements. Single row bearings can carry radial load and axial load in one direction. Double-row angular contact ball bearings have two designs of one outer ring and two inner rings and one outer ring and one inner ring. For the design with one outer ring and two inner rings, the axial clearance is easy to control during machining.

Applications:

    These bearings are mainly applied in the machine tool spindles, high-frequency motors, gas turbines, oil pumps, air compressors, printing machines and other installations.

Model	Size			15º		25º		Cage Material
				Limit Speed		Limit Speed
	ID	OD	H
				Cr   Cor	Grease   Oil	Cr   Cor	Grease    Oil
71820C	100	125	13	22.5   37.0	7500   13000	21.2   34.9	7000   12000	Bakelite
71821C	105	130	13	22.7   38.3	7500   13000	21.3   36.1	7000   12000	Bakelite
