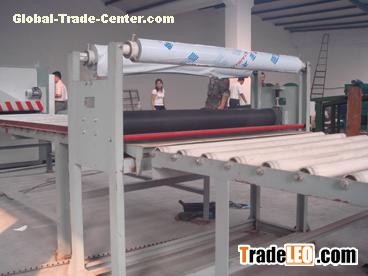

Double side film laminating-lamination machine

This machine is used to laminate protective film on the stainless steel and aluminium sheets or coil or mirro. surfaces from scratching, marking, denting during its handling, transportation

Use for Stainless Steel, Alum., Brass and Mild Steel (sheet or coil),

Specifications:

1,The lamination can go forward or reverse and the machine mainly include idler roller, tension roller, pressure roller, spare roller.

2,Together with this machine are usually conveyor tables of lengths for sheets transfer.

3,Max.working length include value="1300" tcsc="0" unitname="mm" w:st="on">1300mm value="1600" tcsc="0" unitname="mm" w:st="on">1600mm,this is two type machine

Technical parameter (FM1600D Double-side film laminator)

Max.working length:value="1600" tcsc="0" unitname="mm" w:st="on">1600mm

Max.working thickness:value="35" tcsc="0" unitname="mm" w:st="on">35mm

Laminating speed:about value="15" tcsc="0" unitname="m" w:st="on">15 m/min

Motors: 1.1KW, value="2.7" tcsc="0" unitname="a" w:st="on">2.7A

Size(LxWxH):700x2050xvalue="1250" tcsc="0" unitname="mm" w:st="on">1250mm

Weight:about 284kgs
