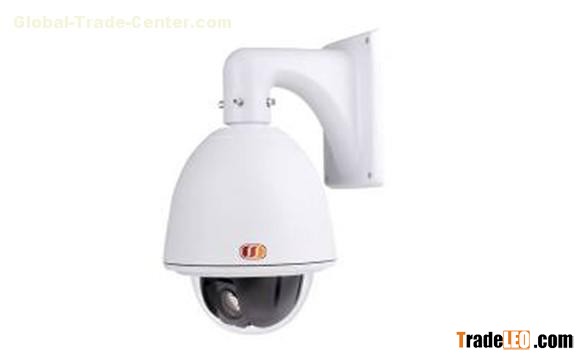

Brand:figigantic HD-IP High-speed Dome Camera
Model:FG-HS200IP-06A
MOQ:-0 -
Send Inquiry
| Model | FG-HS200IP-06A | FG-HS200IP-06B | FG-HS200IP-06G | FG-HS200IP-06C |
| Cam Characteristics | ||||
| Sensor | 1/2.8 inch Exmor CMOS | 1/2.8 inch Exmor CMOS | 1/2.8 inch Exmor CMOS | 1/3 inchCCD |
| Resolution | 1920 x 1080 | 1920 x 1080 | 1920 x 1080 | 1280 x 720 |
| Optic zoom | 18 X optic zoom | 20 X optic zoom | 30 X optic zoom | 18 X optic zoom |
| Digital zoom | - | 12X digital zoom | 12X digital zoom | 12X digital zoom |
| Min illumination | 0.1 lx (F1.6, 50 IRE) | 0.5 lx（F1.6, ICR OFF） | 0.5lux(ICR OFF),0.095lux(ICR ON) | 1.2lx(F.1.6, ICR ON） |
| 0.095 lx（F1.6, ICR ON） | ||||
| 1.7 lx（F1.6, ICR OFF） | 0.02lx(F.1.6, ICR OFF） | |||
| 0.3 lx（F1.6, ICR ON） | ||||
| S/N ratio | More than 48dB | More than 50dB | More than 50dB | - |
| WDR | Support | |||
| Focus | Auto or manual | |||
| White balance | Auto or manual | |||
| Video enhancement | White balance, mirror, color enhancement, digital noise reduction, slow shutter, auto gain control | |||
| Privacy masking | Support | |||
| Shutter speed | 1/1 to 1/10000sec | |||
| Gain control | Auto or manual（-3dB-26 dB,16STEPS） max. gain limit（6dB to 28dB,12STEPS） | |||
| PTZ Characteristics | ||||
| Horizontal speed | Horizontal: 360° , 0.08° to 300° /s | |||
| Vertical speed | Vertical:180°, auto-flip 0.08° to 300° /s | |||
| Preset | 128 presets | |||
| Sequence tour | 4 | |||
| Preset tour | 4 | |||
| Self-learning tracks | 4 tracks, each 100s | |||
| Idle protection | 0 to 240s | |||
| Boot-up action | Preset, tracks | |||
| Protection | IP66 | |||
| Work Temp | -30°C to 65°C , 95% HR | |||
| Size | 260 x 380 mm | |||
| Power | AC24V, max. 55W | |||
| IP Characteristics | ||||
| Compression | H.264 | |||
| Dual-stream | Main-stream:1920×1080 | Main-stream: 720p 1280×960 | ||
| Sub-stream: 1080×720 | Sub-stream:1280×720 | |||
| frame rate | 1～25fps | |||
| Overlay caption | Support channel name, date, stream information overlay caption, the position is adjustable | |||
| Image adjustment | Brightness, contrast, saturation | |||
| Audio encoding | PCM G.711，support 32K stereo | |||
| Interface | 1×10base-T/100base-TX, RJ45 | |||
| Alarm I/O | 1CH× In, 1CH× Out | |||
| Audio I/O | 1CH× In, 1CH× Out 3.5mm audio interface | |||
| Protocols | TCP/IP，ARP，ICMP，FTP，RTP/RTCP，NTP，DNS，DDNS，SNMP，PPPoE | |||
| Application functions | Motion detection, alarm linkage, audio intercom | |||
| Configuration and maintain | Support WEB brower to configurate and view video | |||
| Access NVR to manage parameter configuration and running statement | ||||
| Intergration | SDK |
