Features:

Model:JW-205V-A

1/3 CCD Panasonic 600TVLdefinition

Good sharpness and pure, completely solve the screen green color problem;

Infrared synchronization function of color to black, lower-noise at night, high definition;

High transmittance optical filters, better correction correction in light and color;

Low power consumption, wide voltage power supply voltage range DC8-18V;

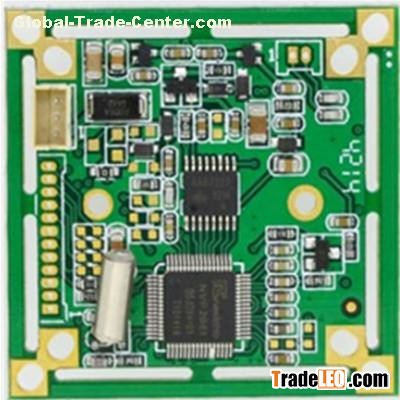

PCB using the immersion gold process, oxidation resistance and corrosion resistance;

ICR-free device, installed more stable ways to end maintenance costs;

Parameters:

Model:JW-205V-A

Image Sensor:1/3 CCD

Effective Pixels:PAL:752(H)×582(V), NTSC:768(H)×494(V)

Signal system :PAL/NTSC

Day/Night:Auto(Color turn black)

Horizontal Resolution:600TVL

S/N Ratio:>50dB

Minimum illumination:0.01LUX

Synchronization System:Internal  Synchronization

Backlight Compensation(BLC):AUTO

auto electronic shutter(AES):AUTO/ 1/50（1/60）-1/100,000sec

Auto White Balance(AWB):AUTO

IR control input voltage:DC 3V-8V

OSD Language:Not Support

Video Output:CVBS/1.0Vp-p/75Ω

Video record occupy space:1min≈27MB

Power supply:DC12V/47mA ±5mA

Temperature:-20°-50°C

Weight:10g
