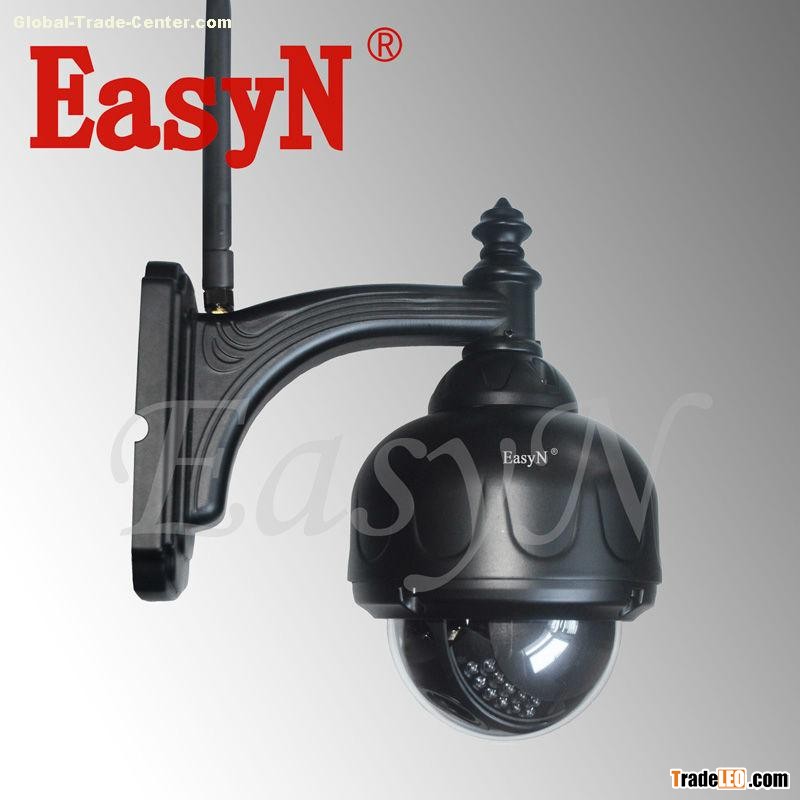

Model:F-M1BF

Features

Superiority

Support monitor via computer and most of intelligent cellophane on the market(such as Android ,Iphone cellphone

mobile software

Provide special software in the iPhone or android mobile phone

DDNS(free)

Built in free DDNS system,like http://demo.easyn.hk, 'demo' is serial code

CMS software

EasyN multi-window mangement software

System security

Supports three-level account, password, user multi-level authority management

CPU

Operation system

Embedded Linux OS

Microcomputer processor

32Bit RSIC Embedded Processor

Network

Network interface

RJ-45   10/100Mb   self-adaptable Ethernet slot

Protocol

Support TCP/IP,HTTP,ICMP,DHCP,FTP,SMTP,PPPoE etc.

Wireless

WIFI,802.11 b/g

IP mode

Dynamic IP address, static IP address, PPPOE

online visitor

Streaming in (640 * 480)directly connected , Support 4 visitors at the same time

Streaming in(320*240)directly connected , Support 4 visitors at the same time

Streaming in (160* 120)directly connected , Support 4 visitors at the same time

Video

Compression format

Motion-JPEG

Signal system

CMOS  300,000  pixel

frame rate

25fps

Zoom

Three times optics zoom

Resolution

VGA(640*480),QVGA(320*240) ,QQVGA(160*120)

Image adjustment

Brightness, contrast.

WB, BLC

Auto

LUX

0.3LUX/F1.2

SNR

>48dB

Lens

Zoom lens 5-15mm

Audio

Compression format

G.711/G.726

Input

Built-in  Mircophone

Output

Video output

PTZ

Motor

Built-in motor control

Rotation angle

Horizontal:355°         vertical: 90°

Preset

No

PTZ Protocol

Standard protocol:PELC0-D Baud rate :4800 Support external PTZ

Nightvision

Nightvision

66Φ3 LED lights      IR distance: 20m

Alarm

Input/output

Motion detection/FTP server , email notification, HTTP

Alarm detection

Motion detection;Detection sensitivity Settings

Detection area

One

Alarm notification

IO linkage;FTP server , email notification, HTTP

Others

Shape material

aluminum alloy

environment

Water-proof  outdoor use

Power supply

12V 1A

Operating temperature

-10~50°C

Operating humidity

10%~90%RH

Dimension

Item size:200 x 160 x 180mm     (L*W*H)

Package size:255 x 195 x 240mm     (L*W*H)

Weight

Item weight:1000g (Note:for real products )

Package weight:1370g

Accessories

Power adapter,CD,manual,warranty card,srews ,bracket ,antenna

System

System requirement

Microsoft Win98 SE/ME/2000/XP,Vista,Win7,Internet Explorer8.0,

Certification

Certificate

CE FCC ROHS ISO
