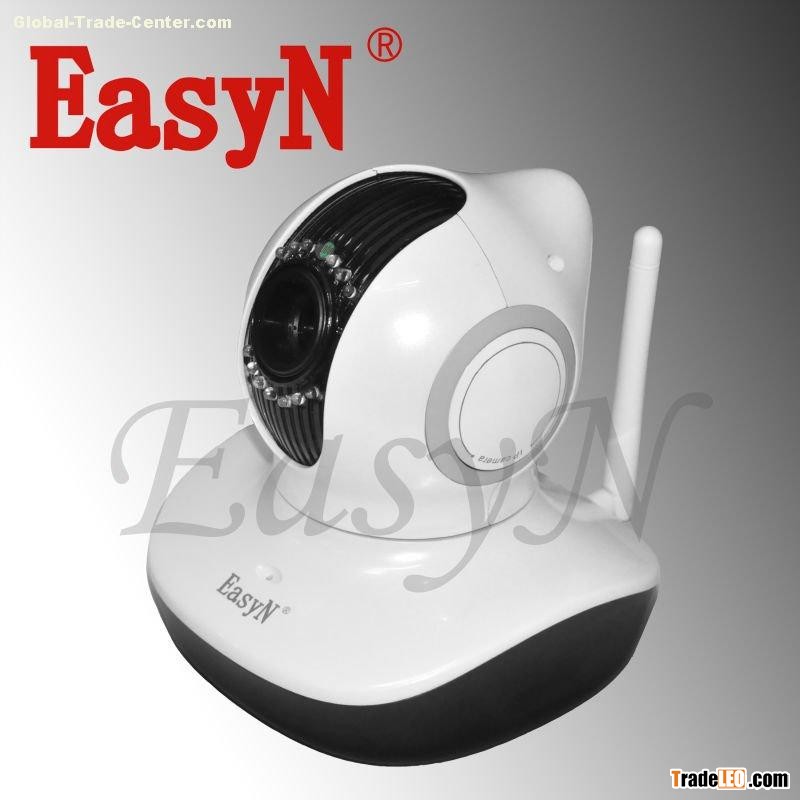

Model:H3-V10D

Features

Superiority

Support monitor via computer and most of intelligent cellphone on the market(such as Android ,Iphone cellphone

mobile software

Provide special software for the iPhone or android mobile phone

DDNS(free)

Built in free DDNS system,like http://demo.easyn.hk, 'demo' is serial code

CMS software

EasyN multi-window mangement software ,remote recording

System security

Supports three-level account, password, user multi-level authority management

Local memory

Support 32G TF card local memory,support alarm recording and picture memory,  Support EasyN NVR

CPU

Operation system

Embedded Linux OS

Microcomputer processor

32Bit RSIC Embedded Processor

Network

Network interface

RJ-45   10/100Mb   self-adaptable Ethernet slot

Protocol

Support HTTP,UDP,SMTP,FTP,DHCP,DNS,DDNS,NTP,UPNP

Wireless

Wifi802.11 b/g/n

IP mode

Dynamic IP address, static IP address, PPPOE

online visitor

Main stream support 5 visitors at the same time

Time stream support 6 visitors at the same time

Video

Compression format

H.264,MPEG4

Image sensor

CMOS 1000,000 pixel

Lens

Standard:  3.6mm

frame rate

1-25fps

Resolution

720P(1280*720)  (640*360)  (320*180)

Image adjustment

Brightness, contrast, color saturation,chroma

WB, BLC

Auto

LUX

0.3LUX/F1.2

SNR

>48dB

Audio

Compression format

G.711/G.726

Input

Two way audio,one channel linear input(powered MIC) and output

Output

Audio output

PTZ

Motor

Built-in motor control

Rotation angle

Horizontal:355°         vertical: 80°

Preset

one-channel  RS485

PTZ Protocol

No

Nightvision

Filter switch

Can auto-switch automatically, without color cast

Nightvision

13Φ3 LED lights      IR distance: 10m

Alarm

Input/output

1 channel RS485

Alarm detection

Motion detection

Detection area

Support 4 detection area

Alarm notification

 Email notification,picture, save the recording and picture to tf card

Others

Shape material

Plastic

Environment

Indoors

Power supply

DC5V 2A

Operating temperature

-10~50°C

Operating humidity

10%~90%RH

Dimension

Item size :120 x 120 x 130mm  (L*W*H)

Package size:170 x170 x 170mm   (L*W*H)

Weight

Item weight:340g   (Note:for real products )

Package weight:700g

Accessories

Power adapter,CD,manual,warranty card,srews ,bracket ,antenna

System

System requirement

Microsoft Win98 SE/ME/2000/XP,Vista , IE5.0, NET4.5,firefox,chrome

Certification

Certificate

ISO FCC CE  RoHS
