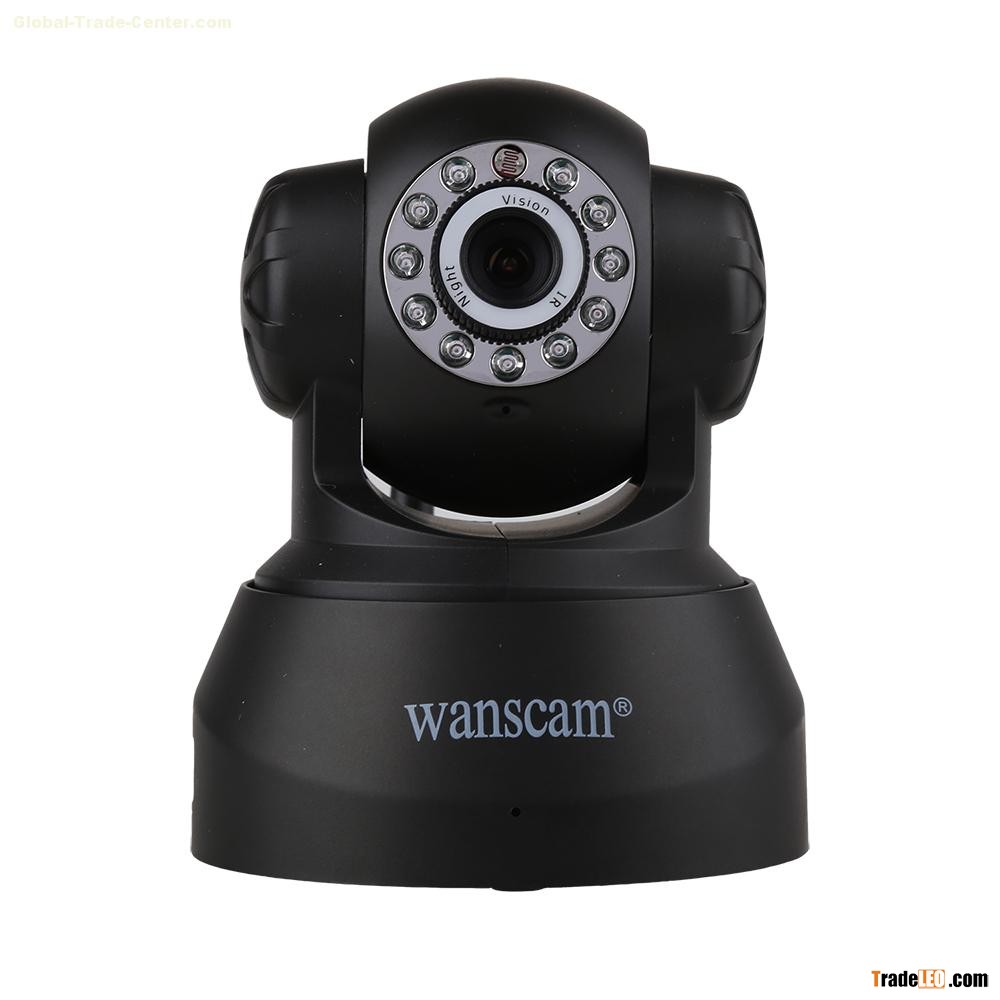

Brand:Wanscam
Model:HW0040
MOQ:-0 -
Send Inquiry
| Model No: HW0040 | ||
| Ssystem | System Security | Supports there-level account, password, user authority management. |
| OS | Embedded Linux OS | |
| Processor | Hi3518E | |
| P2P (Free) | No need to preset camera, Offer free P2P(HWAA-000xxx-xxxxx), Plug&play, Support QR code scanning to view | |
| Onvif Protocol | Support ONVIF Protocol | |
| Multi-device function | Support 12 language remote surveillance, record, alarm, wifi setting etc. | |
| PC client | Support remote multi-devices monitor, record, alarm etc. | |
| Cell Phone View | Self R&D APP, Support Iphone,Android smart Phone | |
| TF Card Record | Support Max 128G TF card .Support the scheduled record,scheduled snapshot,Support Intelligent record playback via browser | |
| Lens | Lens Type | Lens Standard : 3.6 mm |
| IR-CUT | Build-in IR CUT, no color cast,auto switch when IR on | |
| Video | Image Compression | H.264/MJPEG |
| Sensor | 1/4 inch 1MP progressive CMOS sensor | |
| Video Parameters | Brightness, Contrast,Saturation,Exposure,sharpness,VerticalAnd Horizontal can be adjusted | |
| Image frame Rate | 50Hz:25fps/60HZ:30fps (1280×720) | |
| First Stream | 720P-(1280x720),(640x352) | |
| Second Stream | VGA-(640x352),(320x176) | |
| Audio | Compression format | G.726/G.711（G.711 Default） |
| Audio In | Built in Mic,also external supported | |
| Audio Out | Built in Speaker,also external supported | |
| Night Vision | Lux | 0 LUX |
| Night Visibility | 10 Φ5 IR LEDs, Night visibility up to 10 meters | |
| Pan/Tilt | Preset | Support 8 Preset Positions |
| Rotation Angle | Pan:355°, Tilt: 90° | |
| Rotation Speed | Pan: Speed Range 5-30°/ S; Tilt: Speed Range 5-50°/ S; | |
| Alarm | Motion Detect | Support 4 Independent detection areas(Sensitivity can be adjustd 1-100） |
| Alarm Action | Support Email Photo alert,Snapshot and Record uploaded to FTP or TF Card | |
| Network | Ethernet Interface | One 10/100Mbps RJ-45 |
| Supported Protocol | TCP/IP，HTTP，TCP，ICMP，UDP，ARP, IGMP，SMTP，FTP，DHCP，DNS，DDNS，NTP，UPNP，RTSP etc. | |
| Access Protocol | Onvif protocol | |
| IP Mode | Dynamic IP address, static IP address, PPPOE | |
| Online Visitor | Support Max 6 visitors at the same time (First Stream:3 visitors;Second Stream:3 visitors） | |
| Supported OS | Support Microsoft Win XP/Win7/Win8/ Mac OS. | |
| Browser | Support Internet Explorer ,FireFox,Google Browser, etc | |
| AP Function | Support AP connect WIFI | |
| Wireless Standard | WIFI, 802.11b/g/n | |
| Others | OSD | Support the OSD name, date and time info superposition（Open/Off） |
| Product Type | Cartoon Robot/ Indoor use | |
| Color | White; Black | |
| Power | DC5V 2A | |
| Working Temperature | -10~50 °C | |
| Working Humidity | 95% RH | |
| Size | Item: 112x102.6mm (HxW); Packaging: 182 x 110 x 149mm (LxWxH) | |
| Weight | N.W.: 290g G.W.: 600g(Note:Actual Weight Final) | |
| Accessories | Adaptor, CD,User manual,Bracket,Screws,Ethernet Cable | |
| Certification | CE,FCC,RoHS | |
| Warranty | Limited 2-Year Warranty |
