Product Description

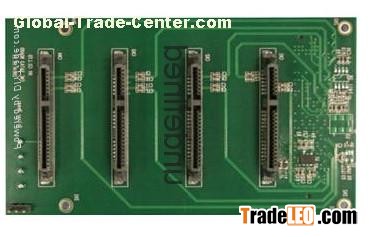

~FMC four SATA3 turn is a daughter board FPGA mezzanine card standard and in line with the largest expansion board FPGA can support the following four SATA3 interface and work simultaneously. Users can use it to set up RAID SATA3 or less a prototype system in order to achieve the purpose of large amounts of data were accessed.

Board comes with a voltage conversion circuit, via a standard 4-pin ATX power connector for powering; Meanwhile, the two onboard 150MHz low jitter differential oscillator can provide high-quality reference clock for SATA IP FPGA on the user-friendly design and implementation as well as the stability of the project

In addition the company also provides SATA2 and SATA3 IP licensing and storage system solutions. Welcome for inquiries.
