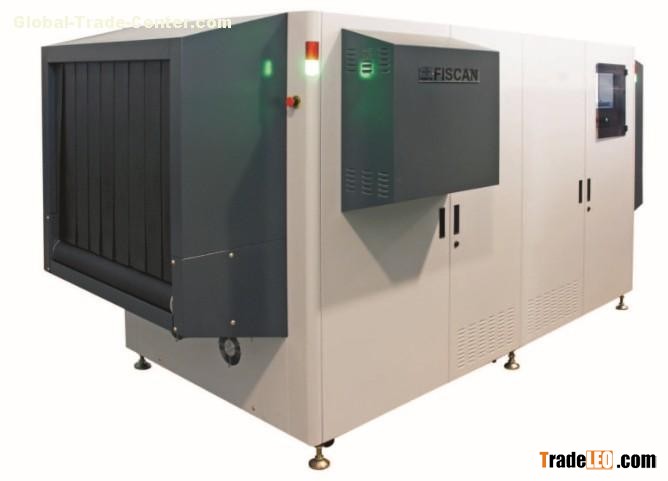

FISCAN EDS-MV10080 multi-view x-ray explosive automatic detection system is new generation system with the high speed of the conveyor belt. It can handle 1800 units’ luggage per hour. FISCAN EDS-MV10080 multi-energy multi-view x-ray explosive detection system, which uses four x-ray generator systems and four sets highly efficient energy detector assemblies, is an ideal system for check-in baggage inspection.

Weight：approx. 3000kg

Dimension: 3608(L)×1670(W)×1803(H)mm

Tunnel Size：1000(W) ×800(H)mm

Power：380VAC(+10%～-15%),50Hz±3Hz, three-phase five-line,

Power Consumption：approx. 3.5kVA
