Brand:ROYALRAY
Model:-
MOQ:-0 -
GENERAL DEscriptION

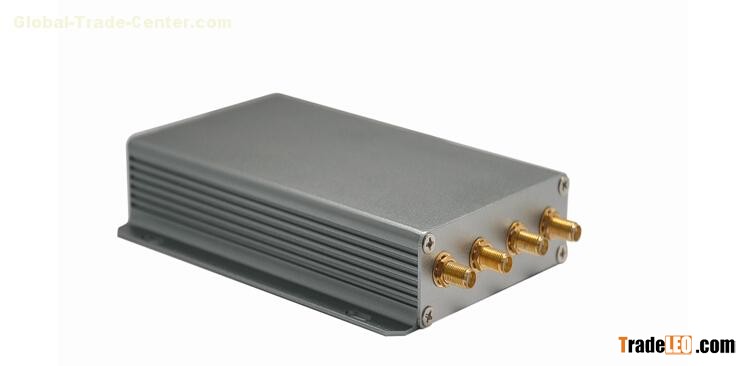

RoyalRay HF high power tag readers RR9093T is designed upon fully self-intellectual property. based on proprietary efficient anti-collision algorithm, the series features excellent tag read/write operation performance with high identification rate. The series can be widely applied in many RFID application systems such as Logistics, Personnel Identification, Conference Attendance, Access Control, Anti-counterfeit, Jewelry Management, Self-service of Laundry and Industrial Process Control.
FEATURES
l Self-intellectual property;
l Support ISO/IEC15693, ISO18000-3protocol tags, NXP EPC, NXP UID, HF EPC protocol tags;
l RF output power over 1W;
l Advanced anti-collision algorithm, high identification rate, typical tag process speed is over 80 tags/s;
l Support standard 50ohm RFID antenna with effective distance up to
l Support Scan-mode①;
l Antenna open/short circuit tolerant;
l Support Transparent Command operation②;
l Support addressable multiple antenna ports;
l Support DPPM/WPPM tag-parsing mode③;
l Support reader network;
l Small outline;
l Low power dissipation design;
l Support RS232 interface;
l Provide DLL and Demonstration Software Source code to facilitate further development.
