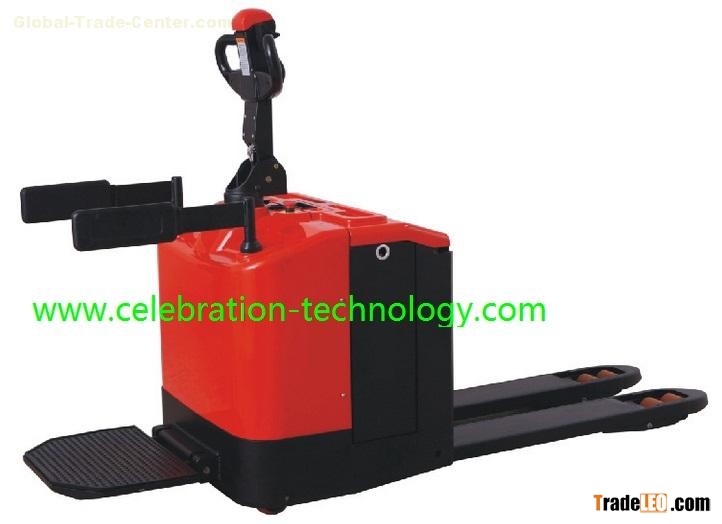

A fully powered pallet truck which can lift and transfer pallets quickly and easily.

Convienent fingertip raise and lower buttons.

Easy-to-operate throttle offers infinite forward and reverse speeds.

Safety features include a horn,an electromagnetic brake and belly reverse button.

24V maintenance free batteries & charger.

Excellent stability & reliability.

Power Type

Electric

Driving Style

Pedestrian

Load Capacity Q

(kg)

1500

Load Center C

(mm)

600

Front Overhang Distance

(mm)

205

Wheelbase y

(mm)

1280

Wheel Materal

Polyurethane

Driving Wheel Dimension

(mm)

Φ250×80

Blance Wheel Dimension

(mm)

Φ75×35

Front Wheel Dimension

(mm)

Φ78×70

Front Wheel Distance b11

(mm)

470

Balance Wheel Distance b10

(mm)

485

Cylinder Stroke h3

(mm)

120

Max. Height of Forks h23

(mm)

205

Lowered Height h13

(mm)

85

Overall Length l1

(mm)

1665

Overall Width b1

(mm)

720

Fork Dimensions s/e/l

(mm)

50/160/1200

Overall Width of Forks b5

(mm)

630

Ground Clearance m2

(mm)

30

Aisle Width Needed Ast

(mm)

1630

Turning Radius Wa

(mm)

1465

Travel Speed, Loaded /Unloaded

(km/h)

4.5/4.1

Gradeability, Loaded

(%)

5

Brake Type

Electromagnetic

Driving Motor

(kw)

0.7

Lift Motor

(kw)

0.8

Battery Voltage/Capacity

(V/Ah)

24/70

Battery Weight

(kg)

35

Truck Weight

(kg)

270

Electric Control

MOSFET
