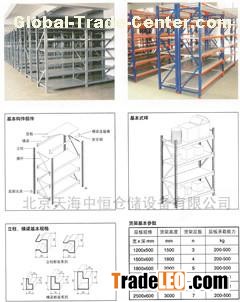

On each effective standard bearer 200-800kg.Medium-sized shelves by the piece of column,beams,cross-cross bracing combination;beam using a specially designed cold-rolled P-type closed beams,the structure has a simple,reliable,light weigh,strong carrying capacity,low cost;card column and the column connection with a specially designed safety pin, you can ensure that the beams under external impact will not fall off ;laminates using the internationally popular strip laminates,the thickness of the laminate,the number of stiffeners to the decision layer contained the requirements,bearing capacity,resistant to wear,and replace the simple,low maintenance costs.B can be the master of the medium-sized shelves,vice free-form arrangement;can take advantage of the stability of the medium-sized shelf B,build a loft shelf;manually applied to the access,or the parts box,turnover box supporting load scattered heavy cargo.

Size:

L1500-2000mm*W500-1000*H1500-2500MM

Upright:30*50*1.0-1.5mm

Beam:30*50  40*60

Shelf:0.5*0.6mm

Surface treatment: electrostatic spray acid phosphate
