Brand:SXK
Model:SXK-D01G-6-1-1-1-1-1
MOQ:100 Sets
Send Inquiry
-
- Features:

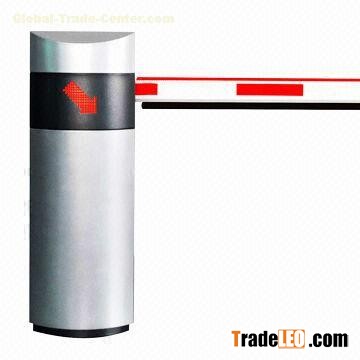

- Adapts unique design for housing, with red/green traffic signindicator
- Full molding design for all main parts, cast by stainlesssteel, realizes precisely match for each components, realizes norusting and corrosion-resistant in atrocious weather
- Advanced manual release
- Compact design of machine core adopts large reduction ratiotechnology, realizes machine core more compact and smartlooking
- Unique transformed boom can rise and fall on left right sidesunder direction
- Arms can be chosen from 2 to 6 meters and beam falling timeincluding three types of 2, 4 and 6 seconds
- Clutch keys can be used to open clutch when power cut-off
- Can be both right- and left-fixed
- Automatically go back meeting obstacles during process oflifting and falling
- Infrared photocell optional
- All mechanical parts work smooth without any noise orshaking
- Loop detector connection and IC system connection are reservedfor other functions
- Loop detector optional
- Can be controlled manually, by finger-tip control, remotecontrol, computer and inductive control
- RS485 communication module optional
- Specifications:
- Rated power: 80W
- Voltage: 110 or 220, ±10% at 50 or 60Hz
- Operating cycles: ≥5 millions
- Working temperature:
- Machine core: -40 to 75°C
- Electric: -20 to 75°C
- Relative humidity: ≤90%
- Protection grade: IP54
- Arm lifting and falling time: 2, 4 and 6 seconds
- Casing colors: blue, gray and orange
- Boom length: 2 to 6m
- Center height: 0.885m
- Motor insulation grade: E
- Remote control distance: 50m
