Brand:RS Security
Model:RS 588
MOQ:1 Pieces
Send Inquiry
Product Description

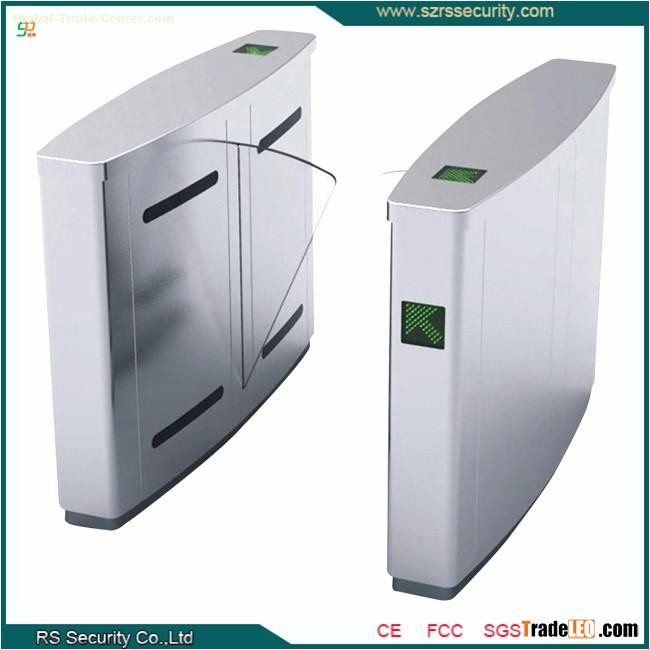

Security High Speed Entrance Gate New Design Flap BarrierFeatures and functions:
1. Fault detection and alarm functions, easy to use and maintenance.
2. The running status can be programmed and controlled with the built-in keyboard on the main board.
3. Mechanical anti-pinch function. If the gate meets resistance in the reset process, motors will stop working automatically within the prescribed time and reset again after the default delay (till fully reset).
4. Anti-breakthrough function. The gate is locked automatically until opening signal received.
5. Synchronization functions (for dual gate equipments).
6. Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds), the system will cancel the authority of the current user automatically.
7. Gate can be set as normally open or normally closed.
8. Can be used with variety of card readers: IC / ID card readers, bar codes, fingerprints, etc. (Access controller needed)
9. Direction can be set as single-direction or bi-direction.
10. LED direction indicator.
11. Gate auto opens when power off and auto close when power on, complying with fire safety requirements.
12. Alarm function, in case of illegal intrusion and reverse intrusion, etc.
13. Counter function (optional).
14. Support infrared photocell for anti-pinch and reset function (optional).
| Model Item | RS 588 |
| Voltage | AC 220V/110V± 10% |
| Frequency | 50/60Hz |
| Current | 3A |
| Control circuit: | DC24V |
| Power consumption | 40W |
| Working temperature | -20° C~60° C |
| Working humidity | 0~95%RH |
| Protection grade | IP44 |
| Net weight | 120kgs |
| Dimension | 1200mm* 300mm* 1000mm |
