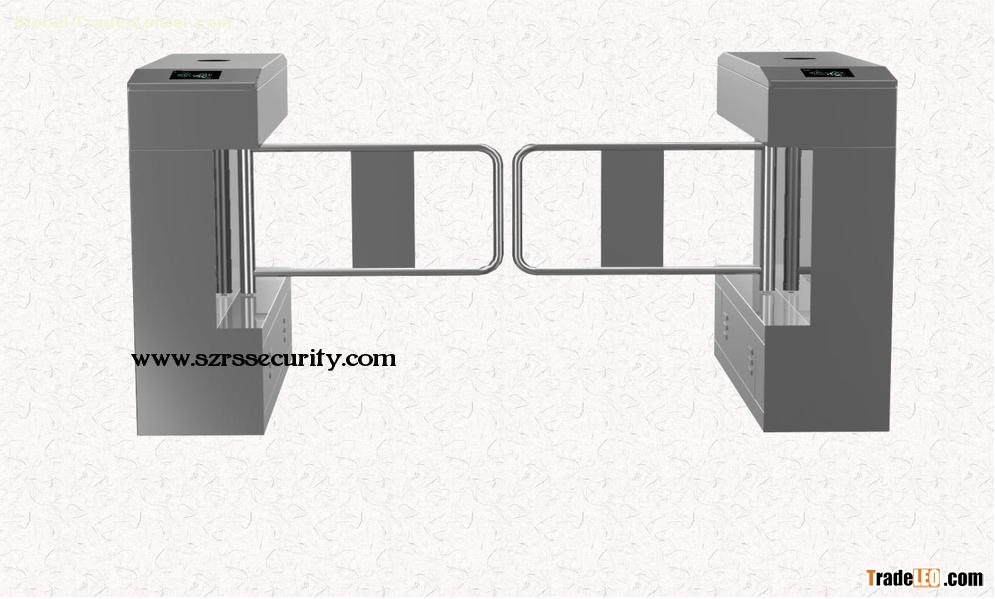

Product Name: Swing gate

Model: RS116

Intelligent swing gate turnstile is integrated with mechanism, electric and micro-controller and various kinds of identification technologies. Adopt reliable security protection equipment, alarm equipments, direction indicator and extended friendly LED panel display.
It has Standard input and output interfaces; It is best choice for system integrators. Compatible with Mifare card, 125kHz card, barcode and fingerprint reader and so on.

Technology specification

framework: 304 Grade Stainless Steel

Specification: 1200*280*1000(mm)

Weight: 90kg

Arm length: 300-600(mm)

Swing angle: 0-180Power

voltage: AC220 (10%more or less) V, 50(10%more or less) Hz

Drive voltage: 24V

Interface: Standard port-RS485

LED indicating light: One

Card-reading window: Two

Transit speed: 30to40persons per minute (normal open), 25to30 persons/per minute ( normal close)

Run into working state when power on: 3 s

Auto reset time when there is breakdown: 10sNormal life: 3 million times

Communication interface: RS 485, distance <=1200m

Input interface: Relay switch signal,12V level signal or 12V pulse signal, pulse width>100ms, drive current>10mA

Function:

• Working method can be set by the buttons on the main panel

• Anti-pinch, anti-collision. If there is block during return of gate, motor stops working automatically. Reset again after a default delay, the force 2Kg.

• Anti-illegal in, anti-intrusion, auto close for reverse direction.

• Anti-collision, gate closes when no valid signal is given.

• Protection functions for gate, gate open to prevent motor from being damaged if there is outer force collision.

• Gates can be synchronous

• Auto-reset. If not go through in a preset time, pass right would be cancelled automatically. (1-60s adjustable), default time is 10s.

• Reset function by photocells, 4 or 6 pairs.

• Anti-pinch function by photocells, 4 pairs

• Compatible with Access control system, consumption system, ESD system, E-ticket system and so on.

• One way or two way control

• Unit can be controlled and administered by remote control

• LED lamp indicator

  Extensible functions:

• LED counter display

• Casing and gate size can be lengthened3. Logic judgment by photocells (8 pair or 10 pairs)

• Speech reminder

• Normal close or normal open adjustable

• Light, sound alarm

  Swing gate turnstile Function:

• Working method can be set by the buttons on the main panel

• Anti-pinch, anti-collision. If there is block during return of gate, motor stops working automatically. Reset again after a default delay, the force 2Kg.

• Anti-illegal in, anti-intrusion, auto close for reverse direction.

• Anti-collision, gate closes when no valid signal is given.

•  Protection functions for gate, gate open to prevent motor from being damaged if there is outer force collision.

• Gates can be synchronous

• Auto-reset. If not go through in a preset time, pass right would be cancelled automatically. (1-60s adjustable), default time is 10s.

• Reset function by photocells, 4 or 6 pairs.

• Anti-pinch function by photocells, 4 pairs

• Compatible with Access control system, consumption system, ESD system, E-ticket system and so on.

• One way or two way control

• Unit can be controlled and administered by remote control

• LED lamp indicator





  Swing gate turnstile extensible functions:

• LED counter display

• Casing and gate size can be lengthened

• Logic judgment by photocells (8 pair or 10 pairs)

• Speech reminder

• Normal close or normal open adjustable

• Light, sound alarm
