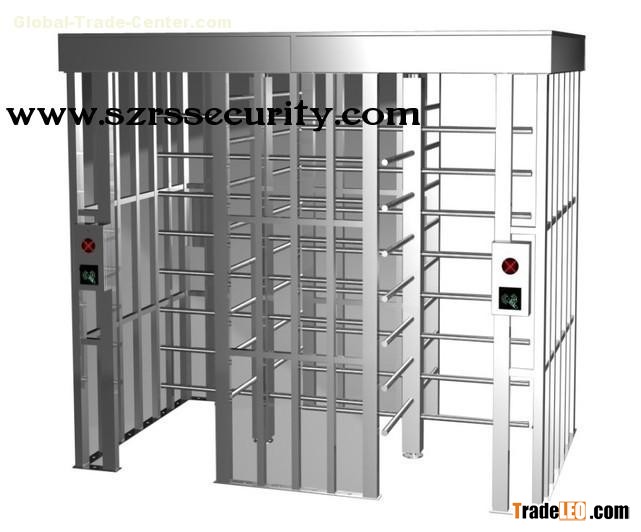

Model: RS998

The full-height turnstile, is a larger version of the turnstile, which eliminates the possibility (inherent in the waist-high style) of anyone j nnecttype="rect" o:extrusionok="f"> umping over the turnstile. It is also known as an ‘iron maiden’, or ‘high-wheel’. It is sometimes called a ‘Rotogate’, There are two types of full height turnstiles, High Entrance/Exit Turnstile or HEET and Exit-Only. The difference between them is that HEET turnstiles can rotate in both directions, thus allowing two-way traffic, while exit-only turnstiles can only rotate in one direction, thus allowing one-way traffic. Exit-only turnstiles are commonly used in mass transit stations to allow passengers to exit the system without interfering with those entering.

Specifications

     framework: stainless steel tube 304# SS

     Dimension: 2600*1350*2200MM

     Barrier opening time: 0.2 second

     Transit speed: 30/minute

     Temperature: 10-℃ ～ 50℃,

     Relative humidity: ≤90%, no condensation

     communication port: standard RS485, distance≤1200meters

     Input port: dry contact, or +12v level signal, or DC12V pulse signal with its pulse width ≥100ms, drive current≥10mA.

Features

     Passing direction: one-way or two-way. Several working methods available,

     Card in, card out, card in, free exit, free in, card exit. .

     Automatic reset function: Lock automatically if people do not pass within the preset time. passing time is adjustable

     Unique bi-direction anti-rotation function,

     Passable on power failure

     Lighting notice: passing direction indication

     Control board has counting function and LED display function (optional)

     Control board has memory function to meet group passing.

     Adopt optics hole location working principle, has no time delay

     Demand for inputting control signal

     Working environment: indoor, outdoor (shelter)

     Size of card reading window: equipped with standard installing holder, or customized

Remarks: there would be a little discrepancy between real product and sample
