Brand:LK
Model:800A
MOQ:30 Pieces
LK800A Roulette machines for sale
Product instruction
1.Take out the plastic cion from the slot,put your coin.
2.Choice N.O/N.C(on/off)which is coin signal.
3.On panel choice switch, which is the cion signal,20ms is the quick signal ,suit the machine which need quickly throwing cion;40ms is the middle- quick signal,suit the normal machine;60ms is the slow signal, suit the normal fun machine.
4.VR switch is sensitivity conthol for coin filtrating ,clockwise turn(+),it accept large tolerance coin, anticlockwise turn(-),it accepts small tolerance coin.
5.If the coin is not easy to be passed on the exactness possition of SW3,please transfer the SW3 to normal positoin and ajust the VR to suitable position.
Function:
1.Prevent false coin
2.Counter connector available
3.Suitable all the coins diameter and width
4.Pulse signal adjustable 20/40/60
5.Coin drop speed & timing preset in S shape sliding passage.
6.Compatible with wide variety of Cabinet. Door & frame.
7.Coin diameter double check in slot opening & lid entrance by diameter-rail &sampling clamp for preventing bigger invalid coin from inserting.
8.Spring lid-wing fully sweep sluggish off passage by reject lever for free from coin jam.
9.More than millions times strong stroke durability of solenoid for the best performance of coin selecting.
Product parameters:
| Coin Diameter: | 18 mm ~ 31 mm |
| Coin Thickness: | 1.2mm ~ 2.4mm |
| Voltage: | DC 12V ±10% |
| Currents: | 70mA -700 mA |
| Temperat | -15°C~+75°C |
| Package: | 30 pcs/ctn |
| Dimension: | 455×340×272 mm |
| G.W: | 15.8 kg |

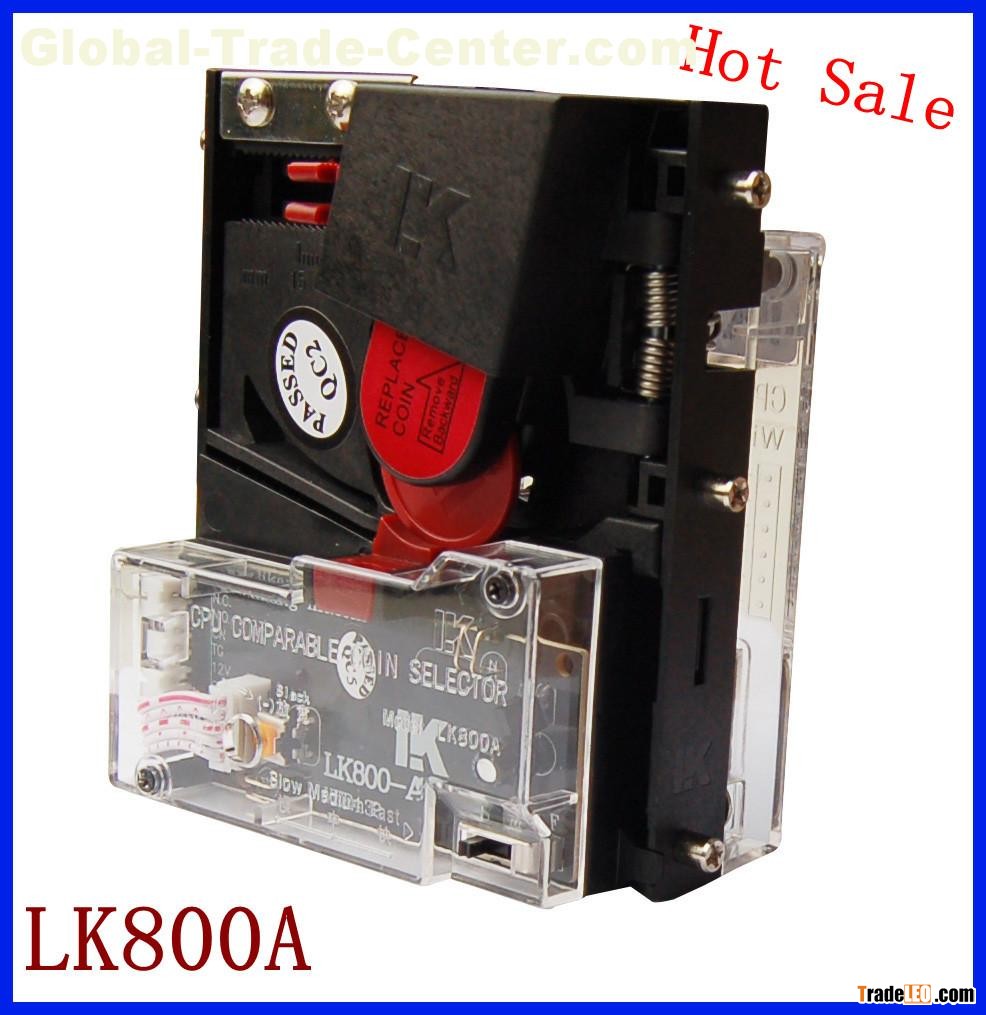

Product appearance
Why choose Likang
1: Quality guaranteed:
Special supervision team to control quality. All the products will be inspected carefully before delivery
2: Competitive price
Compare with other manufacturers in this field , at the same quality , our price is competitive than others .
3: Payment terms
By T/T, 30% of the payment should be paid in advance and the rest should be paid before delivery.
4: Delivery time
1-5 days after payment
5: After service guarantee
Assure you the best services at all times.
6: Warranty
We offer a warranty period for one year.
7: Shipping
We will prepare favorable and professional shipping for you .
Our products have got the CE certificates
Application area
Our coin acceptor widely used in coin kiosk, car washing machine, TV, message chair, cloth dryer, cyber coffee, Laundromat, laundry,computer ,amusement machine , arcade machine etc .
