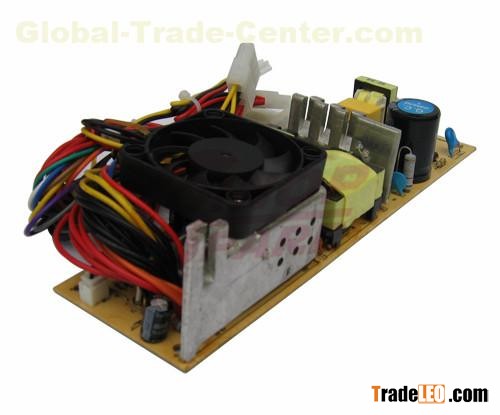

Model：CS60-5-12 game switching power supply 　 Specs：5V6A 12V2.5 　 Size：L159*W97*H38mm

Characteristic：

* Universal AC input/ Full range
* Low cost, high reliability
* High efficiency, low working temperature
* Built-in EMI filter
* 100% full load burn-in test
* Low ripple & noise
* Protections: short circuit/overload/over voltage

Specification：

Input Voltage-------------------------85—264V AC, 120—360V DC

Input frequency----------------------47—63Hz

Inrush current------------------------cold start, 15A at 115V, 30A at 230V

Output voltage-----------------------See the following table (CH1: ±10% adjustable)

Overload protection-----------------105%--150% rated output power, auto-recovery

Over voltage protection------------CH1:115%---135% rated output voltage,

Setup,rise,hold up time-----800ms,50ms,10ms/115VAC; 300ms,50ms,50ms/230VAC

Withstand voltage-------------------I/P—O/P, I/P—FG: 1.5KV, 1 minute

Working temperature---------------0-50℃ @ 100%, -10℃ @ 80%, 60℃ @ 60% load

Safety standards---------------------UL1950, EN60950, CB, CE

Connection----------------------------7P/9.5mm pitch terminal block with cover

Net weight-----------------------------0.5kg

Model	Output	Tol.	R&N	Effi.
CS60-5-12	5V，6A	±2%	50mV	74%
	12V, 2.5A	±6%	100mV	Contact Infomation Send Inquiry Company name:Coinop Spare Status:[Offline] [Send message] [Chat] Business contact:Vivi Zhao (Mr.) Telphone: Mobile: Area: Caribbean Region-Bermuda Address:Longmei Industry Zone Panyu District Guangzhou City Guangdon Zip:511400
