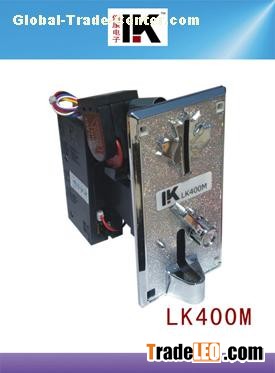

value="400" tcsc="0" unitname="m" w:st="on">LK400M game machine accessories /coin mechanism for game accessories :

1.Take out the plastic coin from the slot, put into your coin;

2.Choice NO/NC(on/off) switch which is COIN signal.

3.On panel,choice switch SW2 which is COIN signal; 20ms is quick signal, suit the machine which need quickly throwing coin;40ma is need middle-quick signal, suit normal machine; 60ms is slow signal, suit normal fun machine;

4.VR switch is sensitivity control for coin filtrating, clockwise (+) turn, it accepts large tolerance coin, anticlockwise (-) turn, it just accepts small tolerance coin;

5.If the coin is not easy to be passed on Exactness position of SW3, please transfer SW3to normal position, and adjust VR to suitable position;

Function:

1.Prevent false coin

2.Counter connector available

3.Suitable all the coins diameter and width

4.Pulse signal adjustable 20/40/60

5.Fishing Alarm

Product parameters:

Coin Diameter: value="18" tcsc="0" unitname="mm" w:st="on">18 mm ~ value="31" tcsc="0" unitname="mm" w:st="on">31 mm
Coin Thickness: value="1.2" tcsc="0" unitname="mm" w:st="on">1.2mm ~ value="2.4" tcsc="0" unitname="mm" w:st="on">2.4mm
Voltage: DC 12V ±10%
Currents: 70mA -700 mA

Temperature: value="15" tcsc="0" unitname="ﾰC" w:st="on">-15°C~+value="75" tcsc="0" unitname="ﾰC" w:st="on">75°C
Package: 30 pcs/ctn

Dimension : 455x340xvalue="272" tcsc="0" unitname="mm" w:st="on">272 mm
