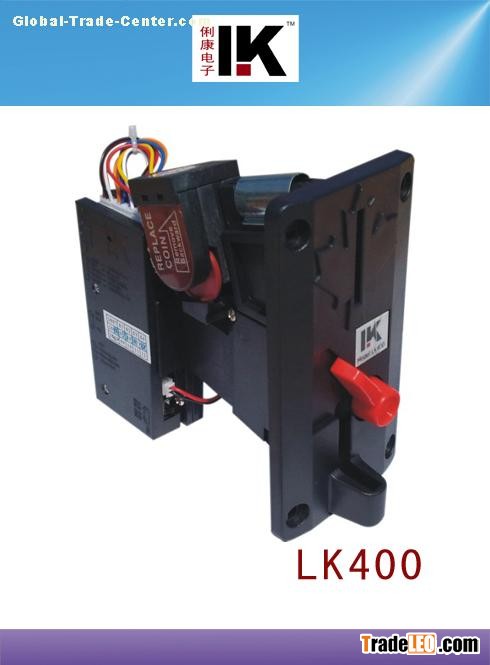

LK400 coin selector/coin acceptor for game machine :

1.Take out the plastic coin from the slot, put  into  your coin;

2.Choice NO/NC(on/off) switch which is COIN signal.

3.On panel,choice switch SW2 which is COIN signal; 20ms is quick signal, suit the machine which need quickly throwing coin;40ma is need middle-quick signal, suit normal machine; 60ms is slow signal, suit normal fun machine;

4.VR switch is sensitivity control for coin filtrating, clockwise (+) turn, it accepts large tolerance coin, anticlockwise (-) turn, it just accepts small tolerance coin;

5.If the coin is not easy to be passed on Exactness position of SW3, please transfer SW3to normal position, and adjust VR to suitable position;

Function:

1.Prevent false coin

2.Counter connector available

3.Suitable all the coins

4.Pulse signal adjustable 20/40/60

5.Fishing Alarm

Product Parameters:
