Features

    The Index Matched Lens System delivers superior resolution from edge to edge of the visual field, along with peak image brightness and optimal contrast
    Increase magnification and the reticle increases too on Front Focal models, so you can estimate range at all power settings
    Side focus parallax adjustment for fast, easy parallax focusing from 75 yards to infinity, from any shooting position
    Low-profile, finger-adjustable 1/2-MOA windage and 1-MOA elevation adjustments with audible, tactile clicks
    Engraved Bullet Drop Compensation dial
    once sighted in adjustment knobs can be zeroed
    The 30mm maintube offers incredible strength and allows for the greater range of windage and elevation adjustment
    65-MOA each of windage and elevation adjustment

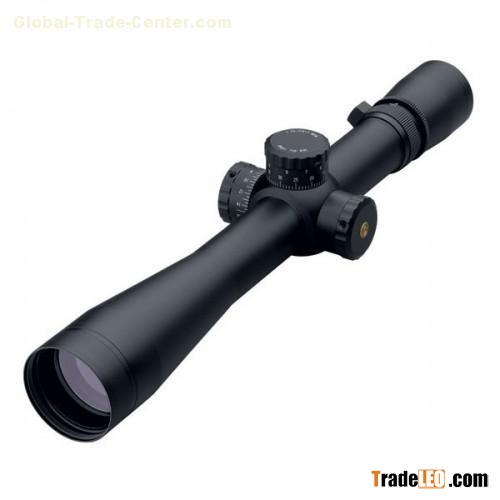

    Flip-open lens covers are standard issue with each Mark-4 LR/T riflescope
    Rugged and absolutely waterproof, LR/T riflescopes can withstand incredible abuse
    Mil-Dot reticle provides accuracy of range estimation for hunters and target shooters
    Matte Black Finish

  Magnification


  3.5x–10x

  Objective Lens Diameter, mm


  40

  Field of View (FOV) @ 100yds, ft / FOV @ 100m, m


  29.9–11.0 / 10.0–3.7

  Exit Pupil, mm


  11.4–4.0

  Eye Relief, mm


  119–86

  Tube Diameter, mm


  30

  Click Value, in @ 100yds


  0.5" (1/2 MOA)

  Windage Adjustment Range, in @ 100yds


  65" (65 MOA)

  Elevation Adjustment Range, in @ 100yds


  65" (65 MOA)

  Reticle


  Mil-Dot

  Lens Coating


  Index Matched Lens System

  Objective Outside Diameter, mm


  46

  Eyepiece Outside Diameter, mm


  41

  Length, in


  13.5"
