Features

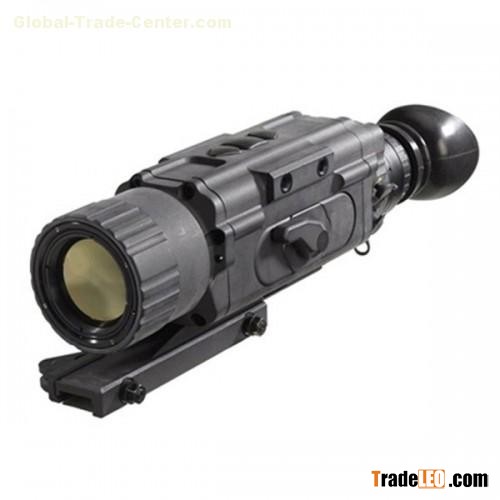

    Day and night capable thermal sight
    Standard 1x system
    Medium and long-range engagements
    Hand-held or weapon mounted
    Simple controls
    30Hz real-time imaging
    NTSC or PAL video output
    External power adaptor
    Quick-release 1913 mount
    320x240 display
    Choice of reticles
    Warranty Card


Detector
  FPA Format         320 x 240
  Type and Material         Amorphous Silicon Microbolometer
  Cooling         Uncooled
  Spectral Response, µm         7–14
  NETD (Thermal Sensitivity)         <50 mK
  Refresh Rate         Real-Time 30 Hz
Performance
  Detect Human Activity, m         >1000
  Optics         f1.2, Manual Focus
  Field of View, degrees         12°
  Continuous Operation, hrs         6+
Physical Features
  Eyepiece Diopter Adjustment         -6 to +2
  Eye Relief, mm         27
  Power Requirement         (4) CR123 Batteries or
  9-28v DC External Power Supply
  Display, pixels         640x480
  Output         NTSC (STD) PAL (on request)
  Waterproof         Yes
  Dimensions, in         8" x 2.6" x 2.8"
  Weight, oz         25
Graphical Features
  Polarity Control         Black Hot / White Hot
  Temperature Reading         Yes
  Colorization         Monochrome (color optional)
  PLUS         4 unique user settings custom tailored for:
  - Reticle design
  - Weapon with calibrated zero
  - Color
  - Brightness
  - Contrast
