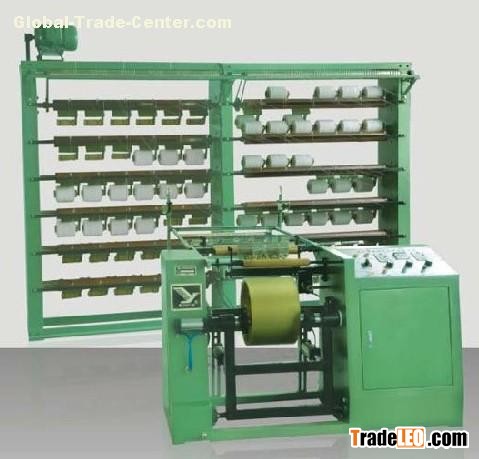

Optimally and flexibly used in the neatening of various kinds of ammonia-chartered and root-chartered yarn;the nose frame and the back frame of the machine are driven by different horsepower,and the frequency conversion set enables free adjustment of the rubber tension.

Diameter of the application beam is below value="400" tcsc="0" unitname="mm" w:st="on">400mm,diameter of inside hole is value="17" tcsc="0" unitname="mm" w:st="on">17mm or value="20" tcsc="0" unitname="mm" w:st="on">20 mm,inside length is value="255" tcsc="0" unitname="mm" w:st="on">255mm.

Speed Adjustment

Frequency control:0-350r/min.(Line Speed0value="390" tcsc="0" unitname="m" w:st="on">-390m/min)

Set Length

Use the counter to set any warp length according to the requirement,this measure can reduce the loss of warp.

Width and Density Adjustment

Adopt 4 pieces of W-reed;adjust width and the left and right device randomly.

Motor

2HP/4P/380V3Phase
